Durable PEEK Corrugated Tube for Chemical-Resistant Hose Applications
Durable PEEK Corrugated Tube for Chemical-Resistant Hose Applications
Brand: SUKO
Website: https://www.sukoptfe.com/
Contact: Contact Page | Email: info@sukoptfe.com
Product Overview

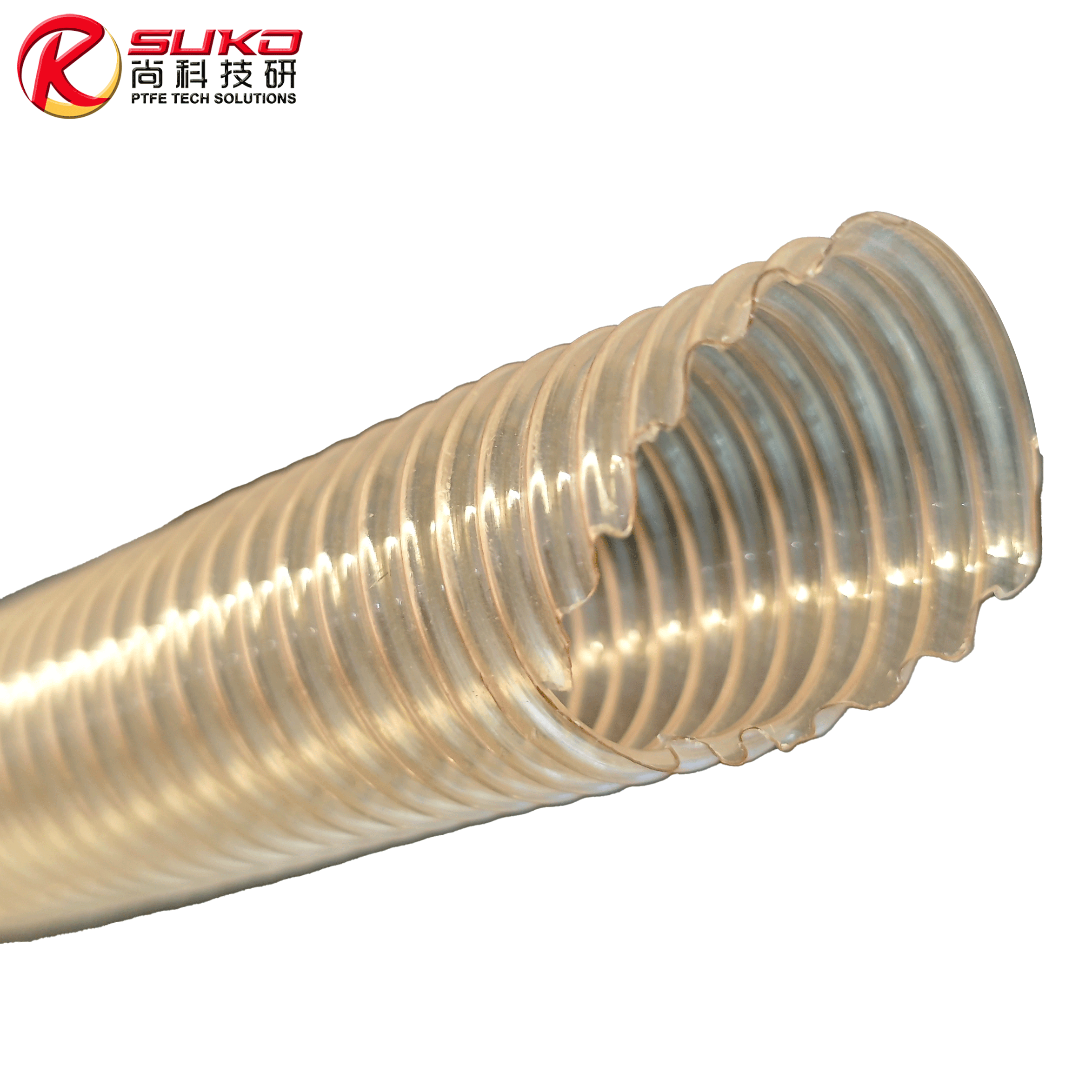

The PEEK corrugated tube manufactured by SUKO is designed for demanding industrial environments where both durability and flexibility are essential. This chemical resistant PEEK tubing delivers superior performance against acids, bases, and organic solvents, making it the perfect choice for harsh chemical processing applications.
Our flexible PEEK pipe retains its mechanical strength and stability at high temperatures, ensuring reliable operation where other thermoplastics fail. Whether used for fluid transfer or cable protection in chemical plants, the PEEK corrugated pipe ensures long service life and optimal performance.
Key Features
- Excellent Chemical Resistance: Resistant to acids, alkalis, and most industrial solvents.
- High-Temperature Performance: Continuous service temperature up to 250°C (482°F).
- High Mechanical Strength: Maintains structural stability under pressure.
- Flexibility: Corrugated design allows easy routing and installation in tight spaces.
- Low Moisture Absorption: Ensures dimensional stability in humid environments.
- Electrical Insulation: Ideal for protecting sensitive cables in corrosive environments.
Typical Applications
- Fluid and gas transfer in chemical processing plants
- Cable protection in environments with aggressive chemicals
- Vacuum and pressure lines in high-temperature systems
- Pharmaceutical and food processing equipment requiring cleanliness and durability
- Automotive and aerospace fluid management systems
Standard Sizes & Dimensions
| SIZE Nominal INCH | SIZE Nominal MM | ID RANGE +/- INCH | ID RANGE +/- MM | WALL THICKNESS INCH | WALL THICKNESS MM | OD Reference INCH | OD Reference MM |
|---|---|---|---|---|---|---|---|
| 3/16 | 4.76 | .182-.192 | 4.62-4.88 | .005 | .127 | .260 | 6.60 |
| 1/4 | 6.35 | .245-.255 | 6.22-6.48 | .007 | .178 | .340 | 8.64 |
| 3/8 | 9.53 | .370-.380 | 9.40-9.65 | .010 | .254 | .480 | 12.2 |
| 1/2 | 12.7 | .493-.507 | 12.5-12.9 | .012 | .305 | .620 | 15.7 |
| 5/8 | 15.9 | .618-.632 | 15.9-16.1 | .012 | .305 | .740 | 18.8 |
| 3/4 | 19.1 | .740-.760 | 18.8-19.3 | .015 | .381 | .890 | 22.6 |
| 7/8 | 22.2 | .860-.890 | 21.8-22.6 | .015 | .381 | 1.02 | 25.9 |
| 1.0 | 25.4 | .980-1.02 | 24.9-25.9 | .020 | .508 | 1.18 | 30.0 |
Note: All dimensions are nominal. Customized dimensions and lengths are available to meet specific project needs.
Technical Data
- Material: 100% PEEK (Polyether Ether Ketone)
- Temperature Range: -40°C to +250°C (-40°F to +482°F)
- Chemical Resistance: Excellent against acids, bases, and solvents
- Color: Natural (beige) or custom colors available
- Standards Compliance: RoHS, REACH compliant
Why Choose SUKO PEEK Corrugated Tube?
With years of expertise in high-performance polymer solutions, SUKO offers PEEK corrugated tubes that meet stringent industry requirements. Our chemical resistant PEEK tubing and flexible PEEK pipe are manufactured with precision to ensure consistent performance, safety, and reliability.
From off-the-shelf sizes to custom-engineered solutions, SUKO can deliver PEEK corrugated pipes tailored to your unique application needs.
