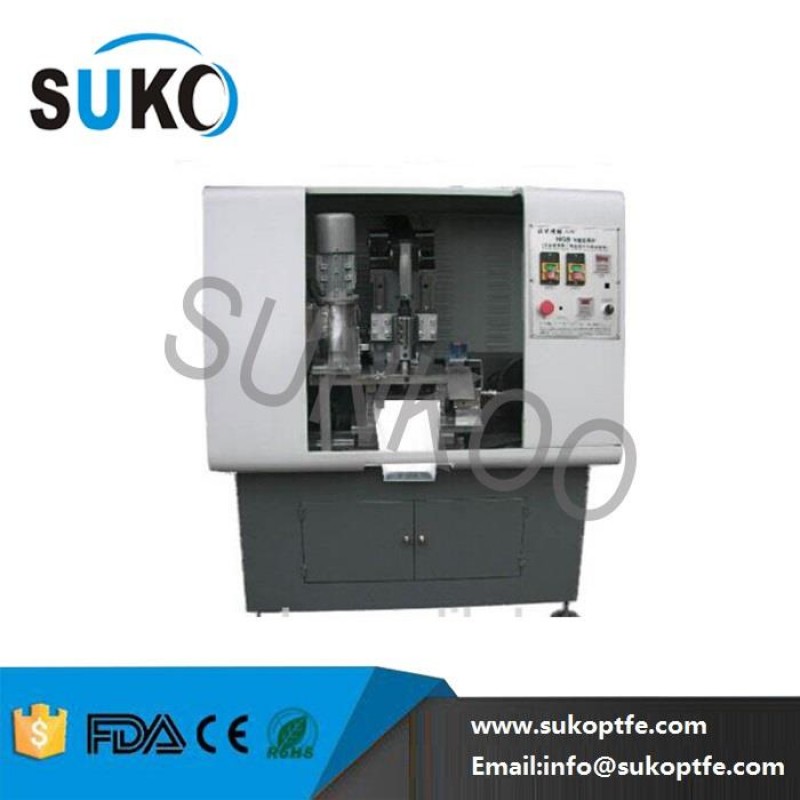

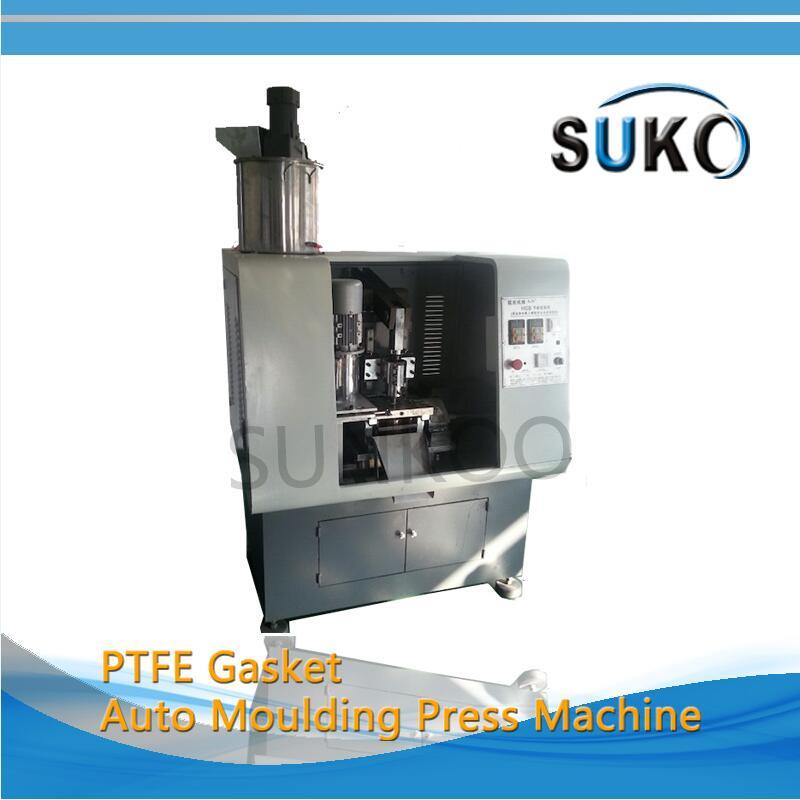

Plastic PTFE Gaskets Press Moulding Machine

Gaskets Press Machine Features:

ü  Efficiently producing: 300pieces/h(large size)

ü  More energy saving: the total power only 5KW

ü  More friendly to environment: no PTFE powder splashing but powder output automatically

ü  Intelligent control : producing gaskets by controlling the power quantity

ü  More time saving : the power cut off automatically while the production number set up

ü  Longer working life : no heat while working.

ü  high quality components used.



Industrial Applications For polymer® Gaskets

PTFE gaskets are used in many industrial applications, especially the following:

·         Compressor – High temperature and surface-wear resistant sealing gaskets.

·         Electric Motor – Sealing gaskets for components that require corrosion-resistance, exposure to high and low temperatures and high surface wear.

·         Medical Component – Seals for electronic instrumentation using materials that provide secure seals and long product life.  Specialty gaskets, especially miniature sizes, are required for many medical devices.

·         Petrochemical – Gaskets for process equipment that are resistant to corrosive fluids, temperature extremes and surface wear.

Data:

Name Description
model automatic ptfe gaskets molding machine
main motor 3.5KW
range of speed 750r/s-1500r/s
powder motor 0.25KW
speed 1400r/min
total power 5KW
the stroke of bent axle 40mm
max diameter 300mm
capacity 100mm-300mm
max depth 2mm-10mm
processing speed 750pieces /h-1500pieces/h
the max pressure 25T
net weight 3000kg
package size 1800x1800x2500mm
package way plywood case
payment term L/C,T/T,Western Union,Paypal
delivery time 15-30 days upon confirmation

Packing size :1)main body : 1800x1800x2500mm2)plywood case : 1800x1800x2500mm

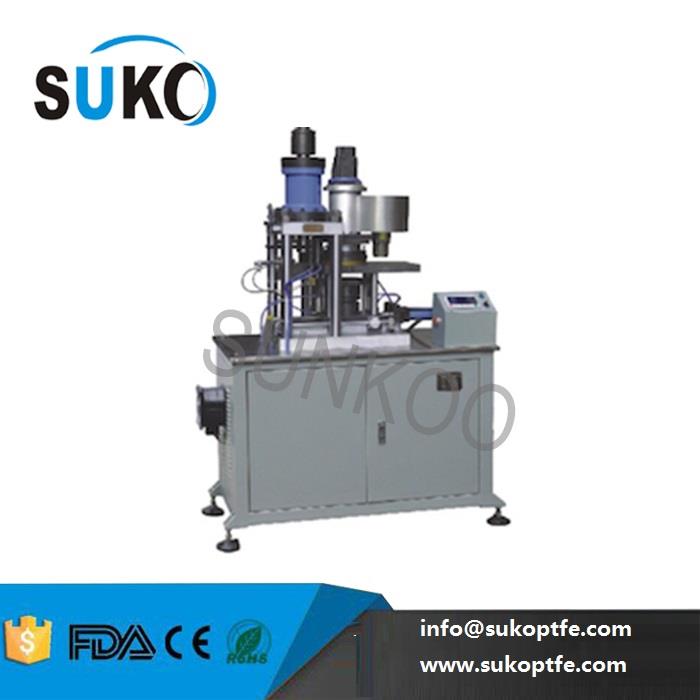

SHDG35, SHDG60 series:

Get In Touch With Us Today

Our staff works closely with each customer to ensure that every job meets your exact requirements and our high quality standards. Contact Sunkoo today!

Please note:  Any technical data provided is for informational purposes only.  Before specifying this machine for your application, please let us know you requirement to better advise suitable machine for you.
