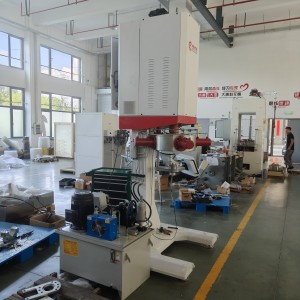

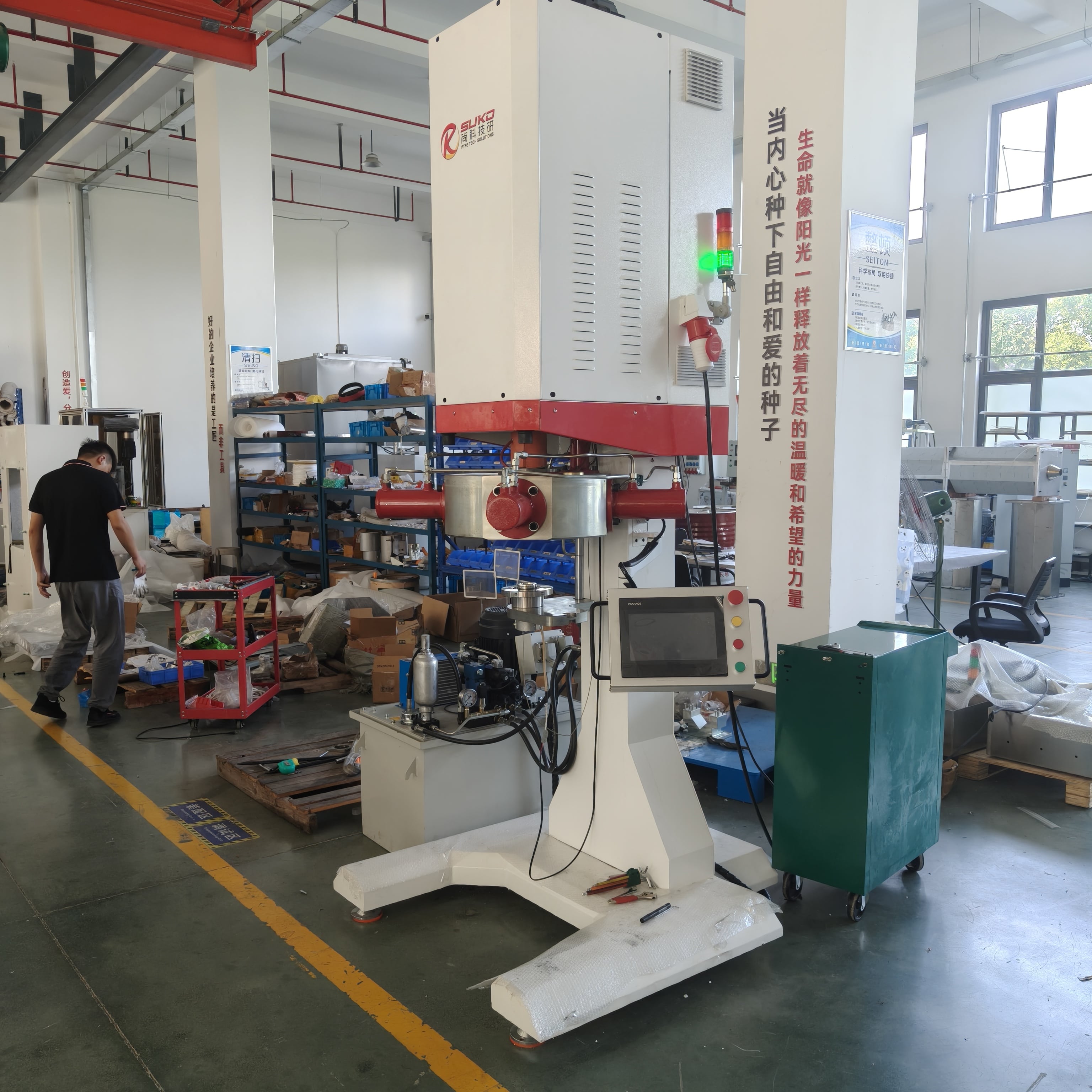

Medical PTFE interventional catheter special extruder line
| Model | Outside Diameter | Wall Thickness |
| SK5-30 PRO | 0.5-5mm | 0.05-0.5mm |
| SK5-20 PRO MAX | 0.3-3mm | 0.025-0.2mm |
| SK5-MP | Multi-lumen tube (2~12 lumens) | |
| SK5-DB | Double-layer conductive tube | |
1. Extrudes various specifications of dispersed PTFE tubes in a paste-like form.
2. Vertical extrusion system, capable of extruding 2-15 meters per minute.
3. Customizable extrusion lengths.
4. Intelligent control system for stable operation.
5. Easy maintenance, flexible transmission, and easy installation.
6. Suko provides the complete equipment, necessary auxiliary equipment, and technical solutions.
7. Suko provides operational process technical guidance.
8. Capable of extruding multi-layer tubes.
| PTFE Extruder Machine | |
| Outside Diameter Range | 0.3-5mm/5-70mm |
| Wall Thickness Range | 0.025-0.5mm/0.5-2mm |
| Wall Length Range | Depends on pipe size |
| Speed of Production | 0-20m/min |
| Production Type | PTFE lined tubes, thin wall tubes, capillaries, microporous tubes, double layer tubes, multi-lumen tubes, mandrels |
| 1.Preformer | |
| Power | 1-10KW |
| Barrel Diameter | 18-38mm/38-300mm |
| Length of Loading Chamber | 300-2000mm |
| Extrusion Type | bottom up |
| Pressure Type | Hydraulic, electric cylinders |
| Voltage | 380V 50HZ 3P |
| 2.Main Extruder | |
| Power | 3-10KW |
| Barrel Diameter | 18-38mm/38-300mm |
| Loading Chamber Length | 300-2000mm |
| Extrusion Type | Bottom up, top down, horizontal extrusion |
| Pressure Type | Hydraulic, electric cylinders |
| Voltage | 380V 50HZ 3P |
| 3.Sintering Furnace | |
| Power | 2-10kw |
| Height | 6000-9000mm |
| Temperature | 500℃ |
| Voltage | 380V 50HZ 3P |
| Number of Furnaces for Sintering | 3 |
