China Multi-Lumen Tubing Manufacturer and Supplier

Multi-Lumen Tubing

SUKO manufactures custom PTFE multi-lumen tubing for medical device components and other precision assemblies. Multiple independent channels are formed inside one tube, allowing fluids, guidewires, sensors and electrical wires to be arranged within a compact outer diameter. Key Features Multiple independent lumens in one PTFE tube 3-lumen, 4-lumen and 12-lumen designs 1+5 and 1+3+3 custom configurations Custom OD, lumen size, color and length Cleanroom production and sample development avail...

Send email to us

Product Detail

Product Tags

Comments

Key Features

Multiple independent lumens in one PTFE tube
3-lumen, 4-lumen and 12-lumen designs
1+5 and 1+3+3 custom configurations
Custom OD, lumen size, color and length
Cleanroom production and sample development available

Available Multi-Lumen Structures

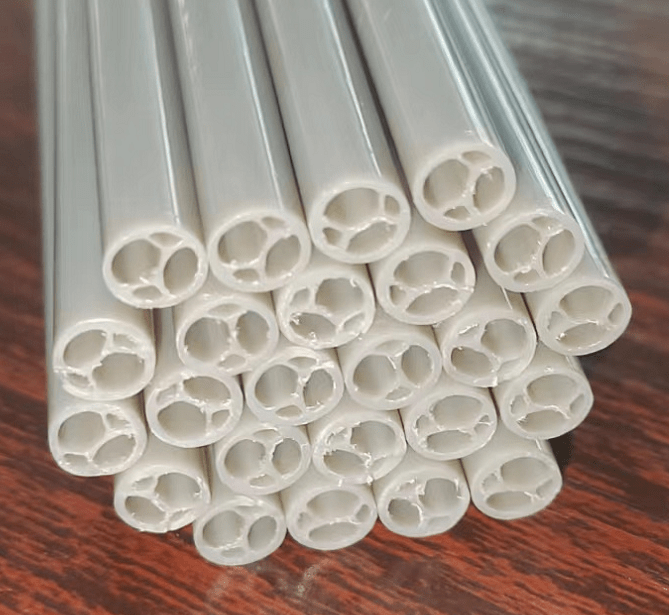

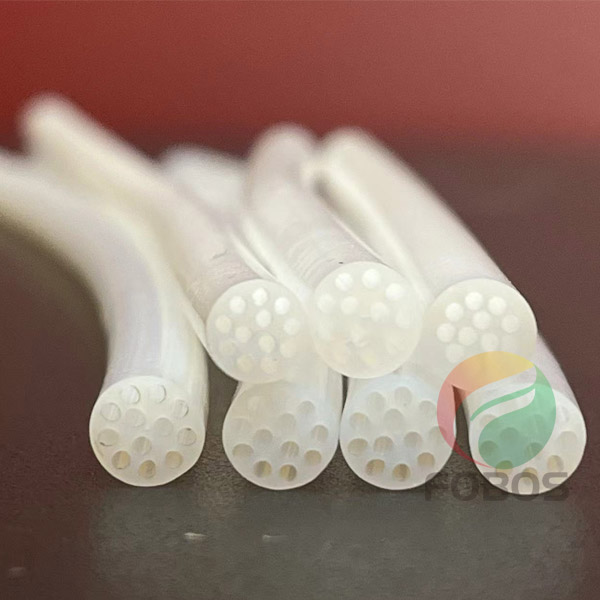

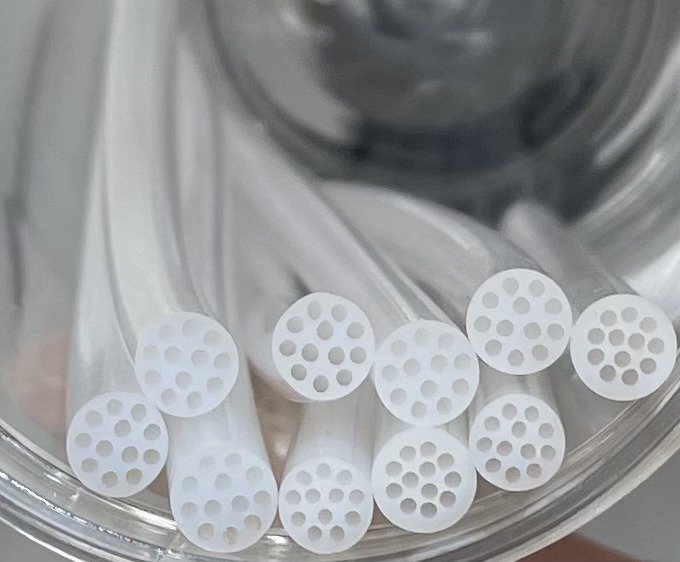

SUKO has developed different multi-lumen tubing configurations, including three-channel, four-channel and twelve-channel designs.

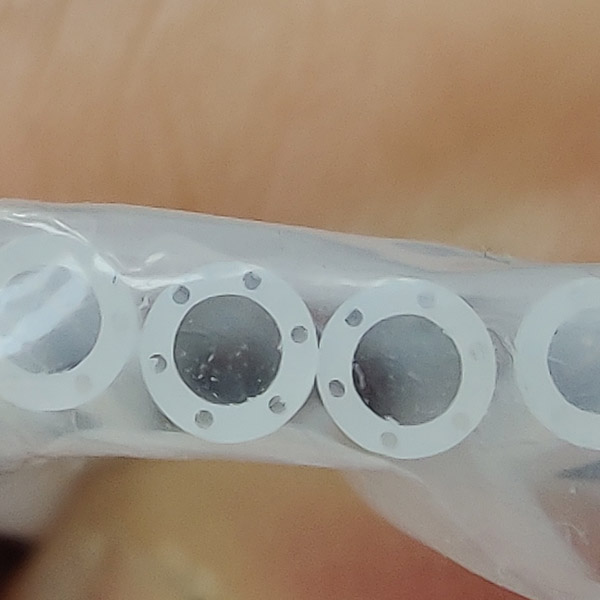

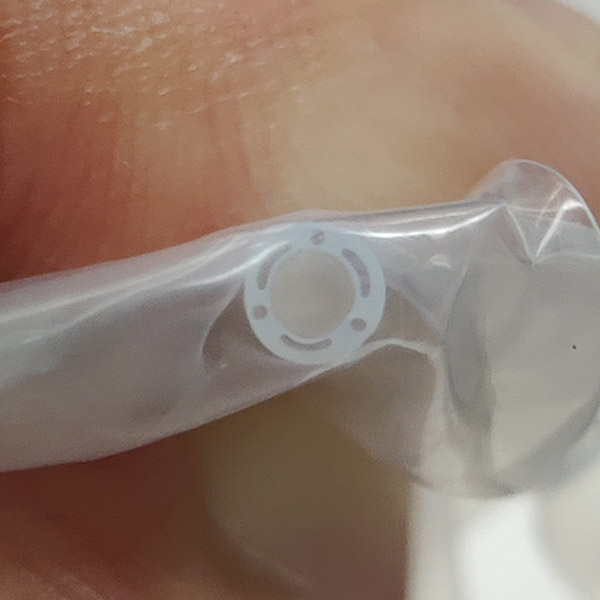

We can also produce one large center lumen with five surrounding lumens. Another available structure combines one main lumen, three auxiliary lumens and three independent wire holes.

Each lumen can have a different diameter and function. The channel quantity, position, spacing and cross-sectional arrangement can be adjusted according to the customer’s drawing.

Custom PTFE Tubing Development

Customers can specify:

Outside diameter and tubing length
Diameter and position of each lumen
Minimum wall thickness and lumen spacing
Natural, blue or other custom colors
Dimensional tolerances
Optional surface etching
Required bending or rigidity performance
Sample and batch quantities

PTFE provides smooth internal surfaces, chemical resistance and electrical insulation. Therefore, the tubing can be used for guidewire passages, fluid-delivery channels, sensor routing, pressure-monitoring lines and electrical insulation within precision assemblies.

SUKO and Fobos Production Capability

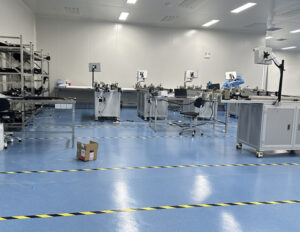

Fobos Polymer is part of SUKO and specializes in precision PTFE tubing for medical device manufacturers. Class 10,000 cleanroom production is available for projects with controlled-environment requirements.

For complex cross-sections, customers can provide a 2D drawing, 3D drawing, sketch or physical sample. Our team can evaluate the lumen arrangement, tooling method, achievable tolerance and sample-development requirements.
