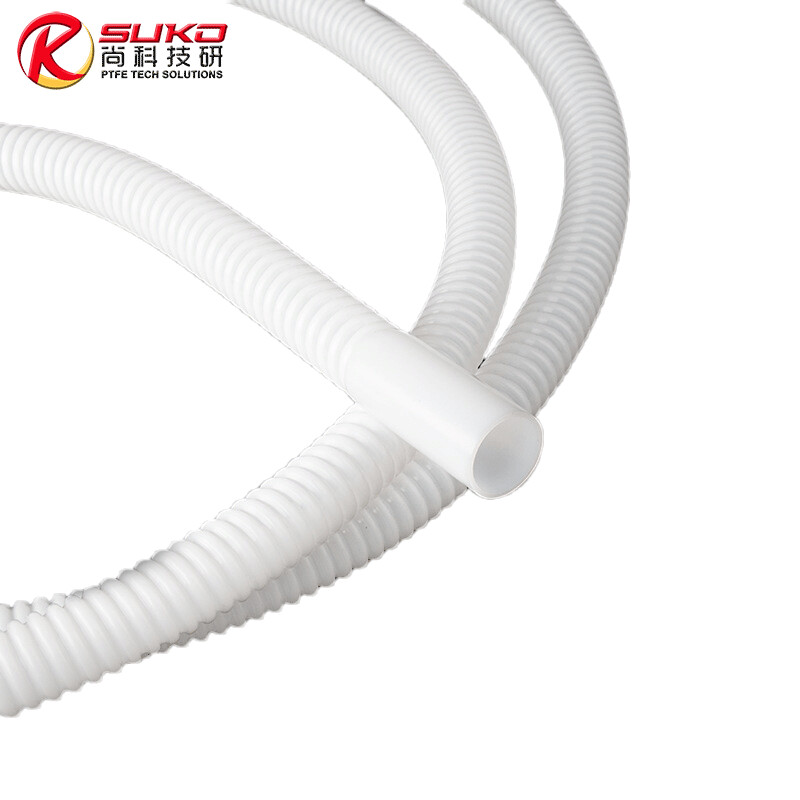

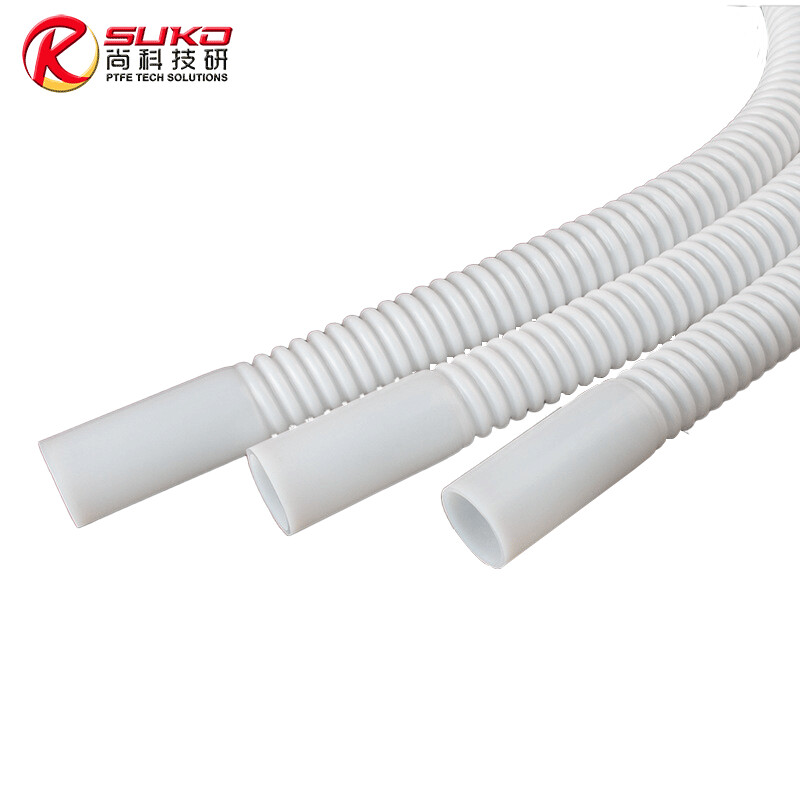

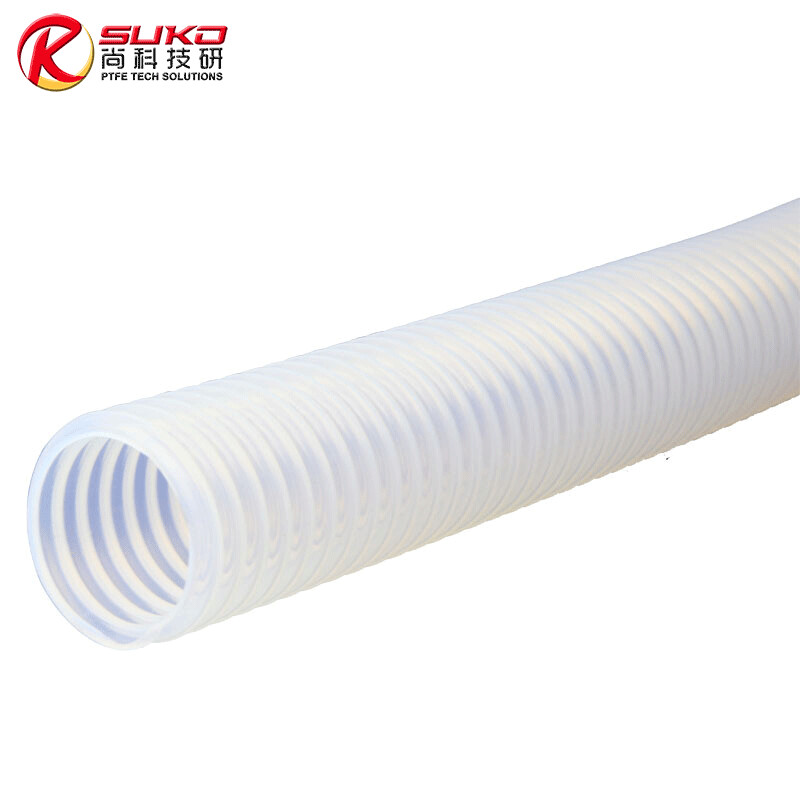

SUKO High-Performance PTFE Corrugated Tubing
SUKO's PTFE Corrugated Tubing offers an exceptional combination of chemical resistance, thermal stability, and flexibility, making it the ideal choice for a wide range of demanding industrial applications. Engineered from 100% virgin PTFE resin, our corrugated tubing provides a reliable solution for fluid transfer, cable protection, and complex routing challenges where a tight bend radius is required.
The convoluted design allows for enhanced flexibility and kink resistance compared to standard smoothbore tubing, while retaining the outstanding properties of PTFE.
Key Features & Benefits
- Superior Chemical Inertness: Resistant to nearly all industrial chemicals, acids, and solvents.
- Wide Temperature Range: Can operate continuously in extreme temperatures from -65°C to +260°C (-85°F to +500°F).
- Exceptional Flexibility: The corrugated design allows for a very small bend radius without kinking or reducing the internal diameter.
- Non-Stick Surface: The low coefficient of friction of PTFE ensures easy flow of media and simplifies cleaning.
- UV and Weather Resistant: Excellent resistance to UV radiation, ozone, and weathering, making it suitable for outdoor use.
- FDA Compliant: Our PTFE materials can meet FDA standards for food and pharmaceutical contact applications.
Typical Applications
Our PTFE corrugated tubing is trusted by engineers and designers across various industries, including:
- Chemical Transfer: Transporting corrosive chemicals, acids, and bases.
- Automotive Systems: Fuel lines, vapor lines, and wire harness protection.
- Food and Beverage Processing: Transfer of foodstuffs, beverages, and sanitary applications.
- Pharmaceutical and Medical: High-purity fluid transfer and medical device components.
- Electrical and Electronics: Insulating and protecting wires and cables in high-temperature environments.
- Aerospace & Defense: Hydraulic and fuel systems requiring lightweight and durable tubing.
Product Specifications
Below are the standard specifications for our PTFE corrugated tubing.
| No. | Nominal Size (inch) | Outer Diameter (OD) (mm) | Outer Diameter (OD) (inch) | Inner Diameter (ID) (mm) | Inner Diameter (ID) (inch) | Working Pressure (psi) | Working Pressure (bar) | Burst Pressure (psi) | Burst Pressure (bar) | Min. Bending Diameter (mm) | Min. Bending Diameter (inch) |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 1 | 1/4 | 10.55 | 0.415 | 7.00 | 0.276 | 60 | 4 | 210 | 14 | 20 | 0.780 |
| 2 | 3/8 | 14.95 | 0.589 | 9.65 | 0.380 | 60 | 4 | 210 | 14 | 22 | 0.866 |
| 3 | 1/2 | 17.90 | 0.705 | 13.08 | 0.515 | 60 | 4 | 210 | 14 | 26 | 1.024 |
| 4 | 5/8 | 21.85 | 0.860 | 16.00 | 0.630 | 45 | 3 | 180 | 12 | 32 | 1.260 |
| 5 | 3/4 | 26.40 | 1.039 | 19.00 | 0.748 | 45 | 3 | 180 | 12 | 55 | 2.165 |
| 6 | 1 | 35.00 | 1.378 | 25.00 | 0.984 | 45 | 3 | 150 | 10 | 80 | 3.150 |
| 7 | 1 1/2 | 45.00 | 1.772 | 35.50 | 1.398 | 38 | 3 | 135 | 9 | 100 | 3.937 |
| 8 | 2 | 59.50 | 2.343 | 47.50 | 1.870 | 30 | 2 | 120 | 8 | 125 | 4.921 |
Note: Burst pressure values are calculated at ambient temperature (20°C / 68°F). Working pressure is typically 1/3 to 1/4 of the burst pressure, depending on the application's safety factor.
Customization Available
The specifications listed above represent our standard product line. At SUKO, we understand that every application is unique. If you require different dimensions, pressure ratings, colors, or other custom features, please do not hesitate to contact us. Our engineering team is ready to develop a solution tailored to your specific needs.
