10 × 12 mm PTFE Corrugated Hose
SUKO manufactures 10 × 12 mm PTFE corrugated hose with customizable corrugation profiles, lengths and end configurations. The PTFE construction provides corrosion and temperature resistance, while the corrugated structure improves flexibility.
• 10 mm ID and 12 mm OD specification
• Corrosion-resistant PTFE construction
• Custom corrugation profile and pitch
• Greater flexibility than straight PTFE tubing
• Produced using SUKO-developed equipment

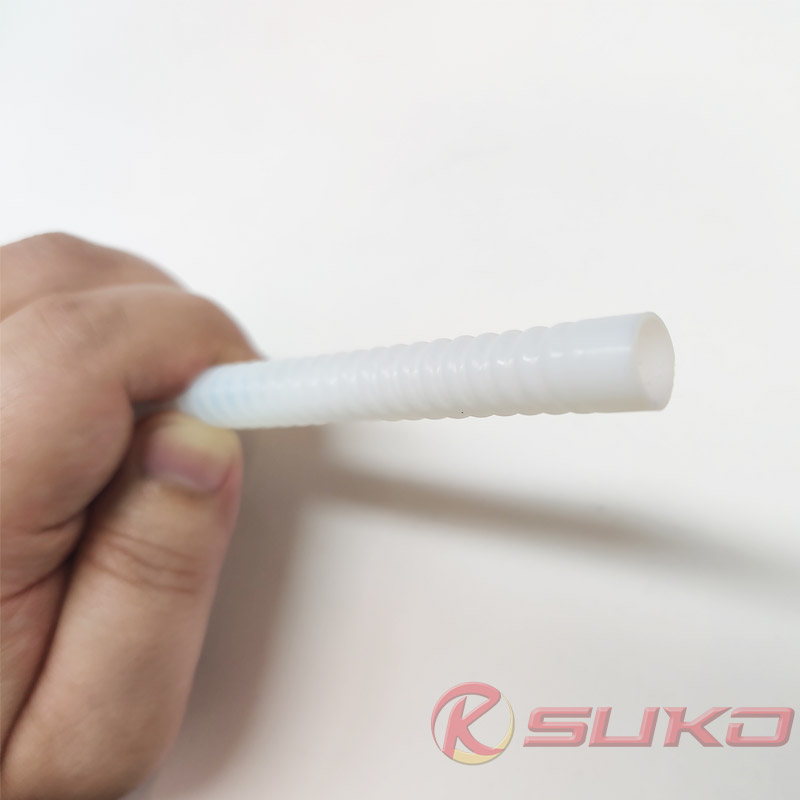

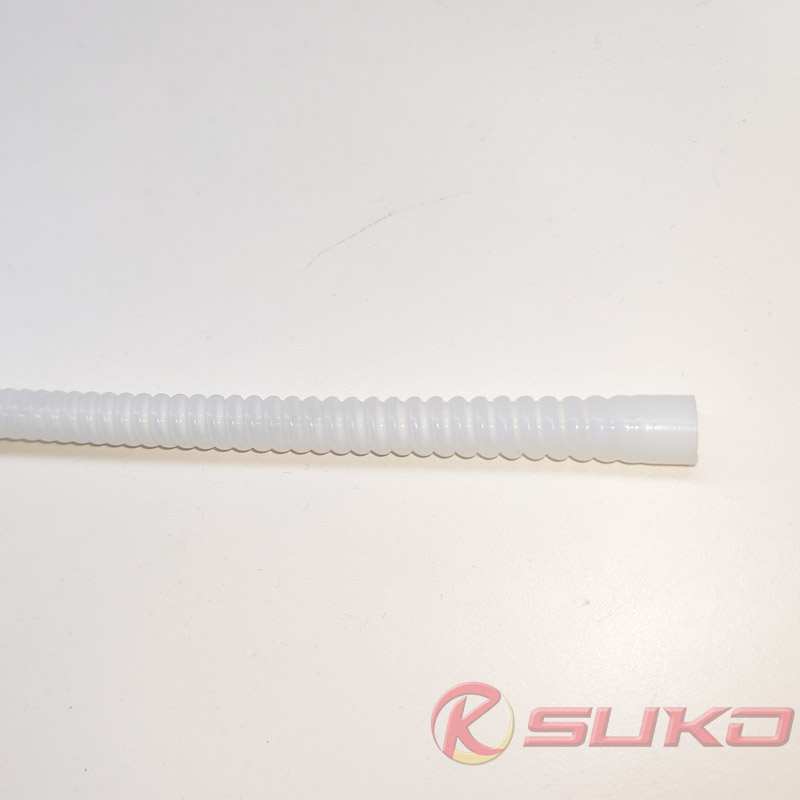

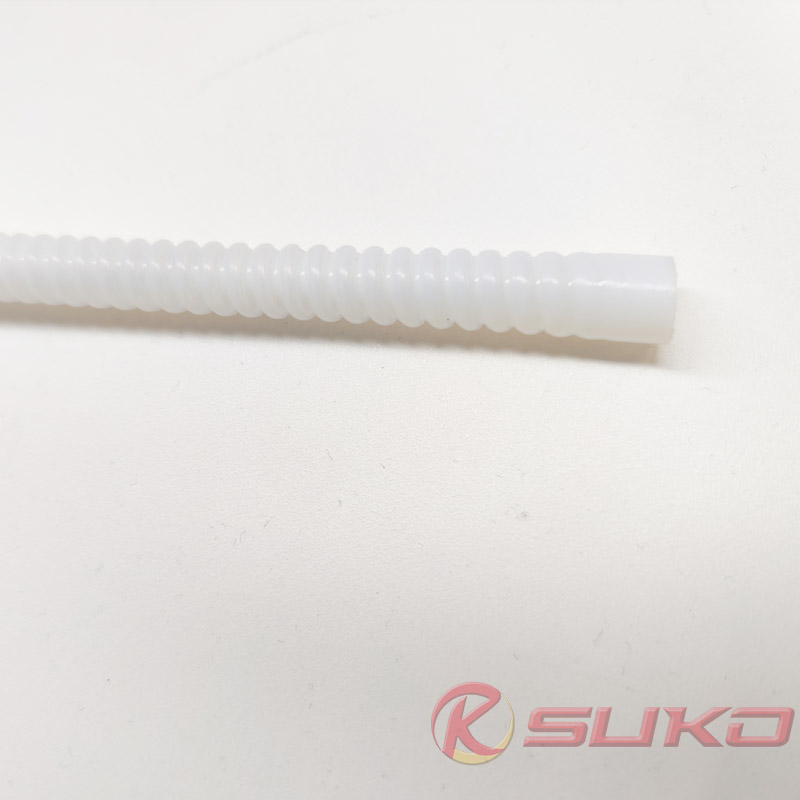

This 10 × 12 mm PTFE corrugated hose is an actual product manufactured by SUKO. The specification normally refers to a 10 mm inside diameter and a 12 mm outside diameter.
Corrugation height, valley diameter and finished dimensions can be manufactured according to a customer drawing or sample.
After the PTFE hose is extruded, it passes through a corrugation-forming process. This structure improves its ability to bend while retaining the corrosion resistance and low-friction properties of PTFE.
Product Specifications
| Parameter | Specification |
|---|---|
| Material | PTFE |
| Nominal Size | 10 × 12 mm |
| Inside Diameter | 10 mm |
| Outside Diameter | 12 mm |
| Color | Natural white |
| Corrugation Profile | Customizable |
| Length | Customizable |
Applications
The 10 × 12 mm PTFE corrugated hose is suitable for fluid lines that require corrosion resistance and flexible routing. It can also be used in compact equipment where straight rigid tubing cannot accommodate movement or installation constraints.
Suitability for pressure, vacuum or specific media should be confirmed according to the operating temperature, pressure, fluid and connection method.
Manufactured With SUKO Equipment
SUKO manufactures PTFE corrugated hoses as well as the equipment and tooling used to produce them.
Different hose dimensions and corrugation profiles can be produced by changing the extrusion die, corrugation tooling and process settings.
View the equipment:
PTFE Corrugated Hose Making Machine
Production Video
The video below shows a SUKO machine extruding and forming a 10 × 12 mm PTFE corrugated hose.
FAQ
What does the 10 × 12 mm specification mean?
It normally indicates a 10 mm inside diameter and a 12 mm outside diameter. Corrugation height, valley diameter and finished dimensions should be confirmed according to the drawing and measurement method.
Can the corrugation profile be customized?
Yes. Corrugation pitch, depth, finished length and end configuration can be adjusted according to the product requirements.
Can SUKO manufacture from a sample?
Yes. Customers can provide a drawing, physical sample or assembly dimensions. SUKO can then confirm the hose specification and required tooling.
Is batch production available?
Yes. Batch production can begin after the sample and finished dimensions have been confirmed.
Can SUKO also supply the production equipment?
Yes. SUKO supplies PTFE hose extrusion equipment, corrugation-forming machines, custom tooling and related production solutions.
Contact SUKO
Contact SUKO for 10 × 12 mm PTFE corrugated hose samples, quotations or custom dimensions.
