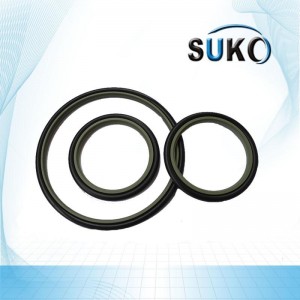

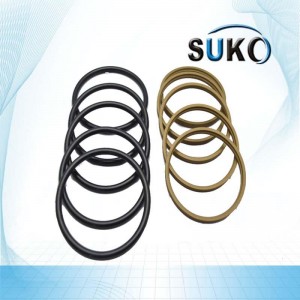

wholesale PTFE Rod Seals price
This rod seal is designed to ensure that pressurized fluid does not leak out of the system.
- * Pressure [MPa]: 60
- * Temperature [° C]: -45…+200
- * Sliding speed[m/s]: 15
- * Medium: Mineral oil based hydraulic fluids, barely flammable hydraulic fluids, water, air and others.
Application:Mobile hydraulics;Standard cylinders;Machine tools;Injection moulding machines.
|Name||PTFE Rod Seals|
|Temperature [° C]||-45…+260|
|Pressure Pr: N/mm² (Max)||60|
|Medium||Mineral oil based hydraulic fluids,
barely flammable hydraulic fluids,
water, air and others.
|Material||PTFE+bronze/carbon, PU, etc.|
|Color||coffee, green, grey green,red|
|Advantages||1. Suitable for dry use (depending on the load).
2. Very good temperature resistance.
3. Compatible with most of the fluids in contact.
4. Easy assembly, low friction coefficient.
|Application||hydraulic cylinders, Pneumatics, Presses
Injection moulding machines, Excavator
Particular attention should be paid to pair the rod seal and the wiper for the best sealing performance. If a less aggressive rod seal is paired with an aggressive wiper, the wiper can scrape off the microscopically thin film of oil that remains on the rod in microscopic surface imperfections during the return stroke, resulting in system leakage.
