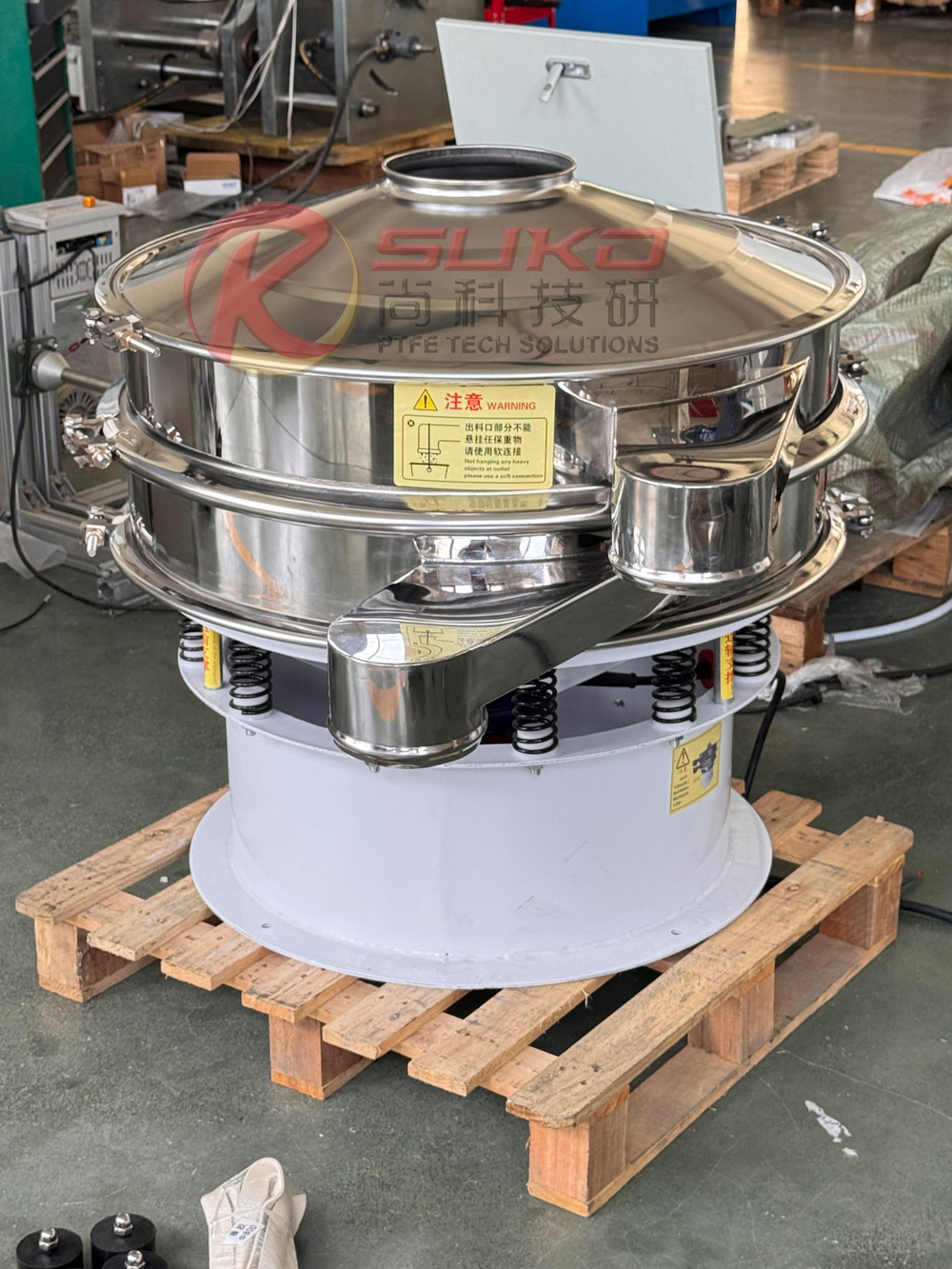

Dual-Outlet Electric Powder Screener
The SK-ES60-2 Dual-Outlet Electric Powder Screener is an upgraded model based on our single‑outlet screener. It enables two‑stage separation in one machine: with a single feed, the unit simultaneously outputs fine and coarse materials. This significantly improves classification efficiency and reduces process steps. It is ideal for production scenarios that require strict particle size control.
Part of the Recycling Line – The SK-ES60-2 is a core component of our Material Recycling Line, where it classifies recycled powders into coarse and fine grades in one pass. It can also be used as a standalone unit. [Link to Recycling Line page]
Working Principle
The SK-ES60-2 uses vibration screening with two built‑in screen layers of different mesh sizes. A vibration motor generates stable 3D oscillation, driving the screen body. Material flows from top to bottom through the coarse and fine screens:
-
Particles larger than the coarse mesh – are retained and discharged through the coarse outlet.
-
Particles between the coarse and fine mesh – fall onto the fine screen and are discharged through the fine outlet.
-
Particles smaller than the fine mesh – can be collected as ultra‑fine powder or directed to the next process.
This achieves one‑feed, two‑outlet continuous classification.
Key Differences: Single‑Outlet vs. Dual‑Outlet
| Feature | Single‑Outlet Screener | SK-ES60-2 Dual‑Outlet Screener |
|---|---|---|
| Number of screen layers | 1 layer | 2 layers (or more) |
| Number of outlets | 1 (usually undersize) | 2 (coarse + fine) |
| Classification capability | Only separates “pass / fail” | Simultaneously produces coarse and fine grades |
| Typical application | Simple impurity removal or single‑stage screening | Formulation production requiring particle size distribution |
Main Applications
-
Chemical powders – Resins, pigments, fillers that need particle size grading for formulation.
-
Food ingredients – Flour, starch, icing sugar separation.
-
Pharmaceutical – Collection of different mesh sizes of medicinal powders.
-
Abrasives & ceramics – Alumina, silicon carbide particle classification.
-
Recycling – Sizing of crushed materials after shredding or milling.
Main Functions
-
One‑feed, two‑outlet classification – Coarse and fine powders obtained simultaneously from a single feed.
-
Improved line efficiency – Eliminates the need to connect multiple screeners in series.
-
Precise particle size control – Meets processes that have both upper and lower size limits.
Operation Requirements
- Select the mesh sizes of both screen layers according to the desired coarse and fine particle sizes.
- Maintain uniform feeding; avoid dumping too much material at once.
- Clean the screen meshes regularly to prevent clogging.
- Place separate receiving containers under the coarse and fine outlets.
Key Features
| Feature | Description |
|---|---|
| One machine, two grades at once | Unlike a single‑outlet screener which only separates “pass / fail”, the dual‑outlet model simultaneously produces coarse and fine powder. |
| Higher efficiency, fewer equipment | One dual‑outlet screener replaces two single‑stage screeners in series, saving space and cost. |
| Controllable classification accuracy | Mesh sizes for upper and lower layers can be freely selected according to process requirements. |
| Continuous operation for batch production | The vibration motor supports long‑run, industrial‑scale continuous feeding. |
| Compact structure, easy maintenance | Simple dual‑layer screen design; mesh change and cleaning are quick and easy. |
| Wider application scenarios | Especially suitable for industries with both upper and lower particle size limits, e.g., coatings, plastic fillers, food ingredients. |
One dual‑outlet screener replaces two single‑stage screeners. One batch of material goes in; coarse comes out the coarse outlet, fine comes out the fine outlet – nothing is wasted in between.
Company Strength
SuKo Polymer Machine Tech Co., Ltd. is an expert manufacturer and exporter of PTFE & UHMWPE machines and products with more than 14 years of experience. All products are of standard quality and have passed CE, ISO & SGS certifications. We have a good reputation in European, USA, Middle East & Asian markets. We believe in customer satisfaction and provide goods at attractive prices.
Our main machines include: PTFE & UHMWPE Rod Ram Extruder, Tubing Ram Extrusion line, Gaskets Press Machine, Paste Extruder, Film Skiving Machine, Plastic Extrusion machine, PTFE Tubing & Rod, PTFE sheets, films, PTFE polymer corrugated tubing, and recycling line equipment (pulverizer, dry mill, electric screener, etc.).
Recent Success Case – Russia Order
On June 12, 2026, SuKo shipped a complete recycling line three‑piece set (pulverizer, dry mill, and SK-ES60-2 dual‑outlet electric powder screener) to a Russian customer. The three machines were delivered together, forming a ready‑to‑use recycling line for processing both sintered and unsintered waste materials. This order followed our recent shipments to Dalian (China) and South Africa – back‑to‑back deliveries that demonstrate our growing global presence.
View more case studies →
Contact Information
For pricing, technical support, or to order the SK-ES60-2 Dual-Outlet Electric Powder Screener, please contact us:
-
WhatsApp: +86 19975113419
-
Email: info@sukoptfe.com
-
Contact page: Go to Contact Us →
SuKo Polymer Machine Tech Co., Ltd. – Your reliable partner for screening and recycling solutions.
