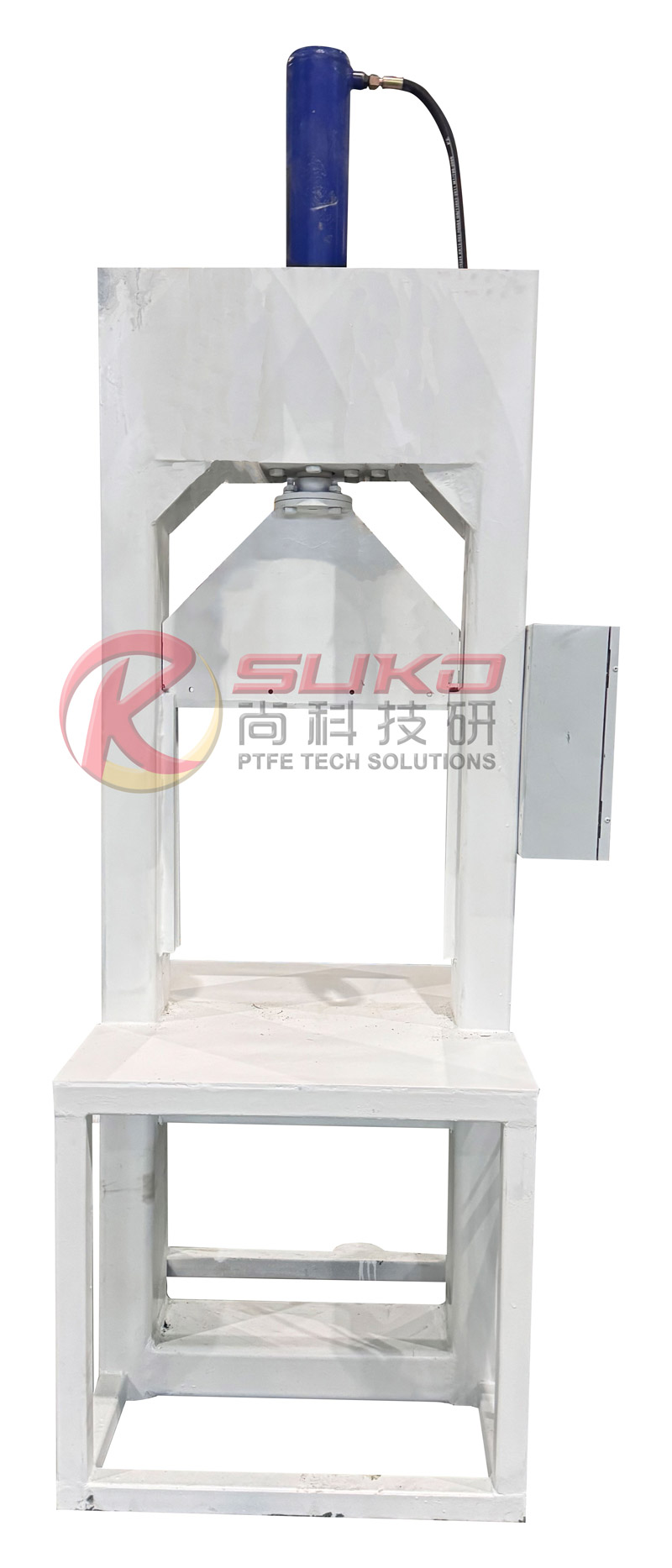

Cutting Machine
The Cutting Machine is designed to reduce large, hard lumps of sintered or heat‑cured material (such as PTFE scrap) into small, manageable chips. It is an essential pretreatment step before washing and dry milling. By creating consistent particle size, the cutting machine improves the efficiency of downstream processes and ensures a higher quality final powder.
Part of the Recycling Line – The Cutting Machine is typically used as the first stage for hardened waste in our Material Recycling Line. After cutting, the chips go to the washing machine and then to the dry mill. [Link to Recycling Line page]
Working Principle
The Cutting Machine uses a rotating knife rotor and fixed blades. Material is fed into the cutting chamber, where the rotor spins at moderate speed. The interaction between the rotating and fixed blades shears the material into small, uniform chips. An integrated screen controls the maximum chip size; particles smaller than the screen opening exit the chamber, while oversize pieces are cut again. This ensures consistent output size without over‑grinding.
Main Applications
-
PTFE sintered scrap – Cutting hard, cured PTFE blocks into small, manageable chips.
-
Other heat‑cured plastics – Thermoset resins, cured rubber, hard polymer waste.
-
Recycling preparation – Size reduction of any hard waste before washing and milling.
Operation Requirements
- Feed material should be free of metal or other hard contaminants that could damage the blades.
- Do not exceed the recommended feed size for your machine model.
- Maintain uniform feeding; avoid overloading the cutting chamber.
- Adjust cutting settings to produce small, manageable chips suitable for downstream equipment (washing machine and dry mill).
- Regularly inspect and sharpen/replace blades to maintain cutting efficiency.
- After cutting, transfer chips to the washing machine without long delays to avoid re‑contamination.
Key Features
| Feature | Description |
|---|---|
| Efficient size reduction | Rotating knife rotor with fixed blades cuts hard lumps into uniform chips. |
| Adjustable chip size | Interchangeable screen determines maximum chip size – flexible for different downstream requirements. |
| Designed for hard materials | Robust construction and wear‑resistant blades suitable for sintered PTFE and similar hard plastics. |
| Low dust generation | Cutting action produces less dust compared to grinding, keeping the work environment cleaner. |
| Easy maintenance | Accessible cutting chamber and quick blade replacement reduce downtime. |
| Protects downstream equipment | Uniform chips prevent overloading of the washing machine and dry mill, extending their service life. |
Integration with the Recycling Line
In a complete Material Recycling Line, the Cutting Machine is the first step for hardened waste:
Hardened waste → Cutting Machine → Washing Machine → Dry Mill → Powder → Screener
If your process also includes non‑hardened waste, that material can bypass the cutting machine and go directly to the pulverizer.
Company Strength
SuKo Polymer Machine Tech Co., Ltd. is an expert manufacturer and exporter of PTFE & UHMWPE machines and products with more than 12 years of experience. All products are of standard quality and have passed CE, ISO & SGS certifications. We have a good reputation in European, USA, Middle East & Asian markets. We believe in customer satisfaction and provide goods at attractive prices.
Our main machines include: PTFE & UHMWPE Rod Ram Extruder, Tubing Ram Extrusion line, Gaskets Press Machine, Paste Extruder, Film Skiving Machine, Plastic Extrusion machine, PTFE Tubing & Rod, PTFE sheets, films, PTFE polymer corrugated tubing, and recycling line equipment (pulverizer, cutting machine, washing machine, dry mill, electric screener, etc.).
Contact Information
For pricing, technical support, or to order the Cutting Machine, please contact us:
-
WhatsApp: +86 19975113419
-
Email: info@sukoptfe.com
-
Contact page: Go to Contact Us →
SuKo Polymer Machine Tech Co., Ltd. – Your reliable partner for size reduction and recycling solutions.
