High-Temp Conductive PTFE Braided Hose for Aerospace Needs
Product Overview

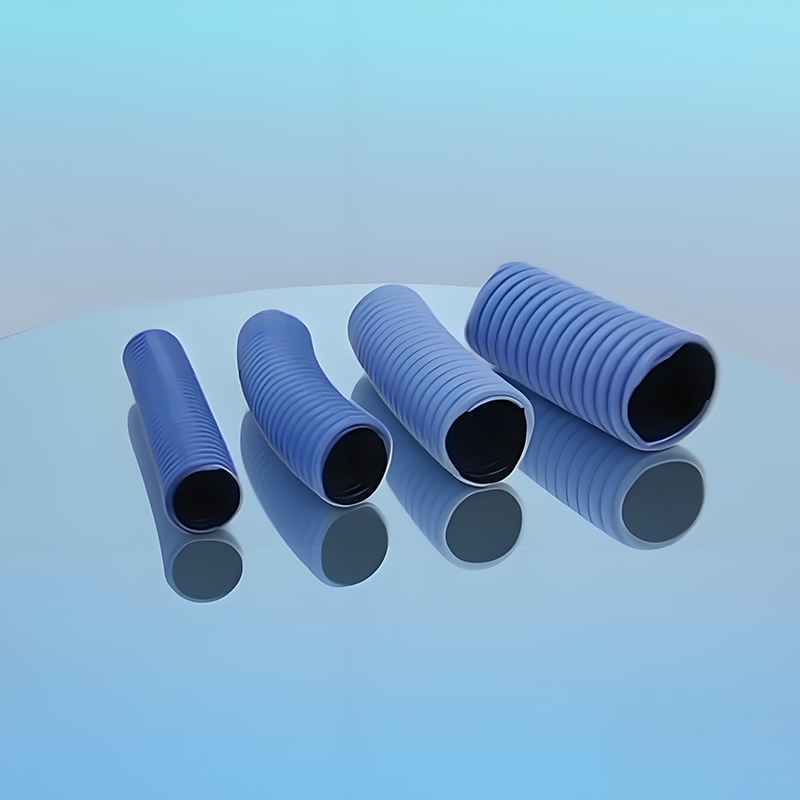

Our High-Temp Conductive PTFE Braided Hose is engineered for aerospace needs, providing conductive properties to safely manage static in fuel and hydraulic systems. This Conductive PTFE Convoluted Tube offers exceptional thermal stability and corrosion resistance for critical applications.
With its braided reinforcement and convoluted flexibility, the Conductive PTFE Corrugated Tube excels in aviation and transportation, ensuring minimal weight and maximum durability under extreme conditions.
Select this advanced Conductive PTFE Braided Hose for aerospace-grade performance and peace of mind in high-stakes environments.
As a leading manufacturer, SUKO specializes in High-Temp PTFE Hose solutions, including Aerospace Conductive Tubing and Braided Convoluted Hose designed for antistatic applications. Our Antistatic Aerospace Tube and Hydraulic Fluid Hose are built to withstand high pressures, extreme temperatures, and aggressive chemicals, making them ideal for demanding industries.
Key Features
- Conductive Properties: The inner PTFE layer includes carbon for static dissipation, preventing electrostatic buildup in fuel, hydraulic, and chemical transfer systems, enhancing safety in aerospace environments.
- High-Temperature Resistance: Operates reliably from -65°F to 450°F (-54°C to 232°C), suitable for High-Temp PTFE Hose applications in extreme conditions.
- Chemical and Corrosion Resistance: Exceptional resistance to corrosive substances, ensuring longevity in chemical plants, pharmaceutical, and food processing setups.
- Flexibility and Kink Resistance: Convoluted design provides superior flexibility, self-draining capabilities, and resistance to kinking, ideal for Braided Convoluted Hose in tight spaces.
- Braided Reinforcement: Stainless steel braid (304 or 316) enhances durability and pressure handling for Aerospace Conductive Tubing.
- Low Friction and Non-Contaminating: Smooth PTFE surface reduces flow resistance and prevents contamination, perfect for Antistatic Aerospace Tube in hygienic applications.
- Lightweight and Durable: Minimizes weight while offering high burst pressure ratings, suitable for Hydraulic Fluid Hose in aviation and transportation.
- Compliance: Meets FDA 21 CFR 177.1550 for food contact, SAE standards for aerospace, and offers full vacuum capability.
Specifications
Our Conductive PTFE Convoluted Hose is available in various sizes to meet aerospace and industrial requirements. Below is a table of conventional product dimensions for High-Temp PTFE Hose, Aerospace Conductive Tubing, Braided Convoluted Hose, Antistatic Aerospace Tube, and Hydraulic Fluid Hose configurations. Custom lengths and assemblies are available upon request.
| SPEC. | O.D. | I.D. | W.P. | B.P. | MIN.B.R. | |||||
| (mm) | (inch) | (mm) | (inch) | (psi) | (bar) | (psi) | (bar) | (mm) | (inch) | |
| 1/4″ | 9.5 | 0.374 | 6.5 | 0.256 | 60 | 4 | 210 | 14 | 20 | 0.787 |
| 5/16″ | 12 | 0.472 | 8 | 0.315 | 60 | 4 | 210 | 14 | 22 | 0.866 |
| 3/8″ | 14.5 | 0.571 | 10 | 0.394 | 60 | 4 | 210 | 14 | 26 | 1.024 |
| 1/2″ | 17.5 | 0.689 | 13 | 0.512 | 60 | 4 | 210 | 14 | 26 | 1.024 |
| 5/8″ | 21.2 | 0.835 | 16 | 0.63 | 45 | 3 | 180 | 12 | 32 | 1.26 |
| 3/4″ | 25.5 | 1.004 | 19 | 0.748 | 45 | 3 | 180 | 12 | 55 | 2.165 |
| 1″ | 32 | 1.26 | 25 | 0.984 | 45 | 3 | 150 | 10 | 80 | 3.15 |
| 1-1/4″ | 42 | 1.654 | 32 | 1.26 | 38 | 3 | 135 | 9 | 100 | 3.937 |
| 1-1/2″ | 47 | 1.85 | 38 | 1.496 | 38 | 3 | 135 | 9 | 100 | 3.937 |
| 2″ | 61 | 2.402 | 50 | 1.969 | 30 | 2 | 120 | 8 | 125 | 4.921 |
*Note: Specifications based on standard 304 stainless steel braid; higher pressures available with double braid options. Burst pressure is typically 4x working pressure (design factor 4:1). End fittings include JIC, NPT, or custom crimped options for seamless integration.
Applications
- Aerospace and Aviation: Ideal for fuel lines, hydraulic systems, and oxygen transfer in aircraft, where Antistatic Aerospace Tube prevents static discharge.
- Chemical Processing: Handles aggressive chemicals and high-velocity flows in plants using Braided Convoluted Hose.
- Pharmaceutical and Food Processing: Non-contaminating Hydraulic Fluid Hose for sterile environments, compliant with FDA standards.
- Automotive and Transportation: Used in EV cooling systems and fluid transfer, outperforming rubber alternatives in durability.
- Industrial Hydraulics: High-pressure Aerospace Conductive Tubing for machinery in pulp, paper, and steel processing.
About SUKO
SUKO is a trusted provider of advanced PTFE solutions, including High-Temp PTFE Hose and related products. Visit our website at https://www.sukoptfe.com/ for more information. For inquiries, reach us via our contact page at https://www.sukoptfe.com/contact/ or email info@sukoptfe.com.
