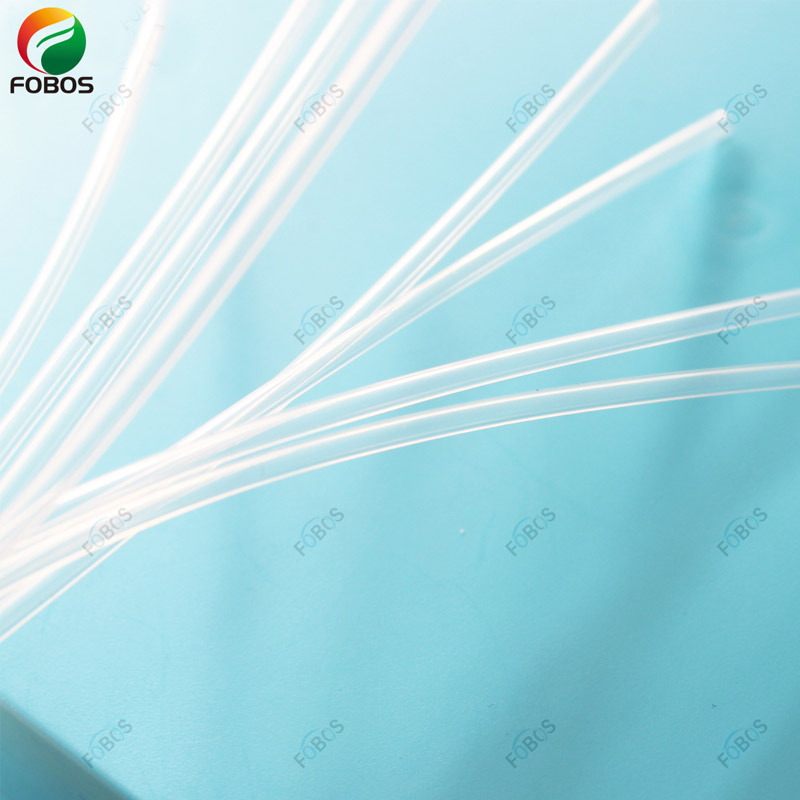

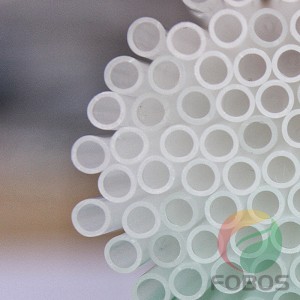

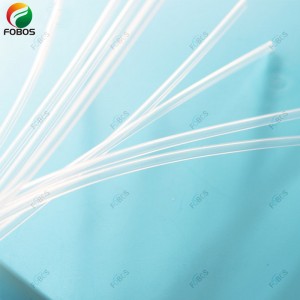

Medical PTFE Single-Lumen Tubing

SUKO supplies custom medical PTFE single-lumen tubing in standard AWG and customer-specified sizes. ISO 13485:2016 quality management and Class 10,000 cleanroom manufacturing are available for medical tubing projects.

SUKO provides medical PTFE single-lumen tubing for catheter components, fluid-delivery channels, guidewire passages, electrical insulation and other precision medical device assemblies.

The standard range covers an ID of 0.25-8.69 mm, an OD of 0.60-9.38 mm and wall thicknesses of 0.23-0.50 mm. Custom tubing can be developed with an OD of 0.20-20 mm and an ID of 0.10-18 mm.

SK5 Extrusion Equipment for Precision Medical PTFE Tubing

SUKO manufactures the SK5 series for precision medical PTFE tubing production. It can be configured for selected single-lumen tubes, thin-wall tubes, liners, capillary tubes and other small-diameter PTFE tubing.

The SK5-20 PRO MAX covers an OD range of approximately 0.3-3 mm and a wall thickness of 0.025-0.2 mm. It is mainly used for custom small-diameter and ultra-thin-wall tubing.

The SK5-30 PRO covers an OD range of approximately 0.5-5 mm and a wall thickness of 0.05-0.5 mm. It can produce many standard medical PTFE single-lumen tubing dimensions from approximately AWG 30 to AWG 7.

Larger single-lumen tubing requires another suitable SUKO paste-extrusion configuration. The final equipment model depends on the required OD, ID, wall thickness, tolerance and production capacity.

View the SK5 Medical PTFE Tubing Extrusion Line

FAQ

Can SUKO customize medical PTFE single-lumen tubing?

Yes. SUKO can customize the ID, OD, wall thickness, length, color and surface treatment according to drawings, samples and assembly requirements.

Is cleanroom production available?

Yes. Medical PTFE tubing can be manufactured in a Class 10,000 cleanroom under an ISO 13485:2016 quality management system.

Can SUKO provide tubing samples before batch production?

Yes. SUKO supports sample development, dimensional confirmation and batch production for suitable medical tubing projects.

Can SUKO also provide the extrusion equipment?

Yes. For high-volume production, SUKO can customize PTFE extrusion equipment, dies and process configurations according to the required tubing dimensions and production capacity.

Contact SUKO

Please send the required ID, OD, wall thickness, length, quantity and intended application.
