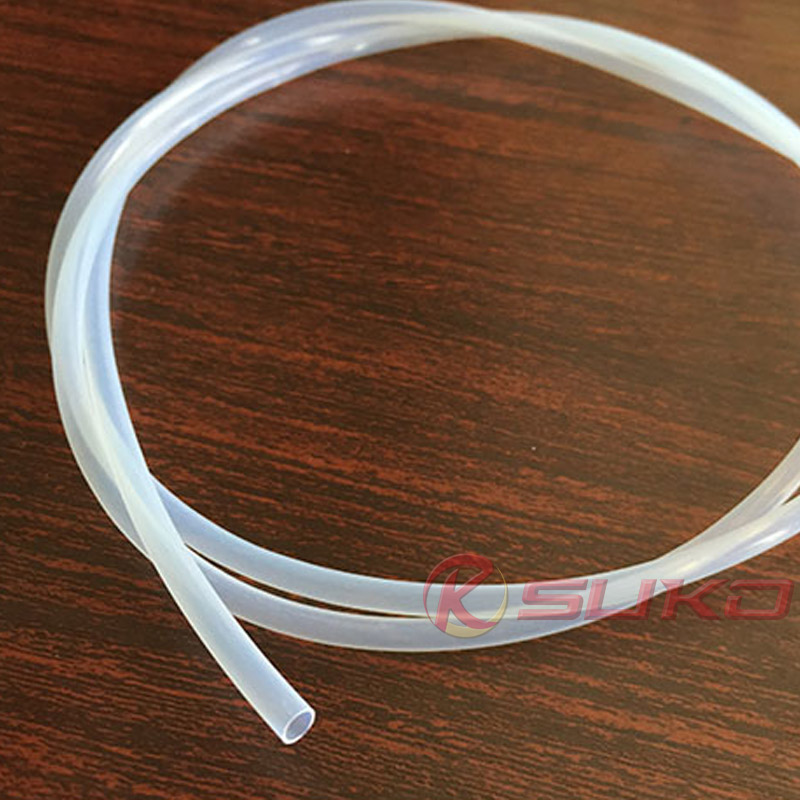

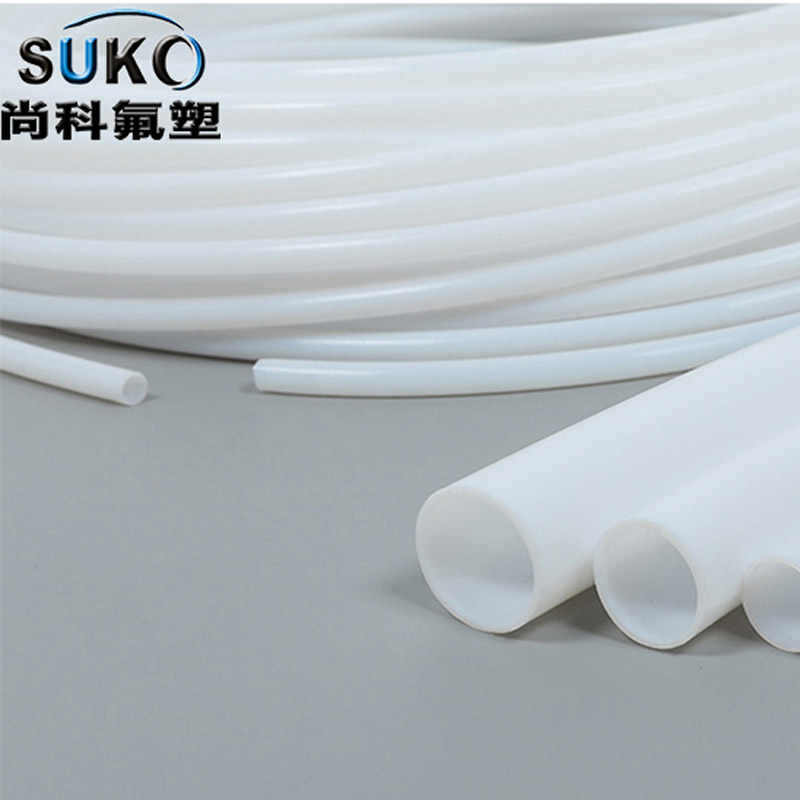

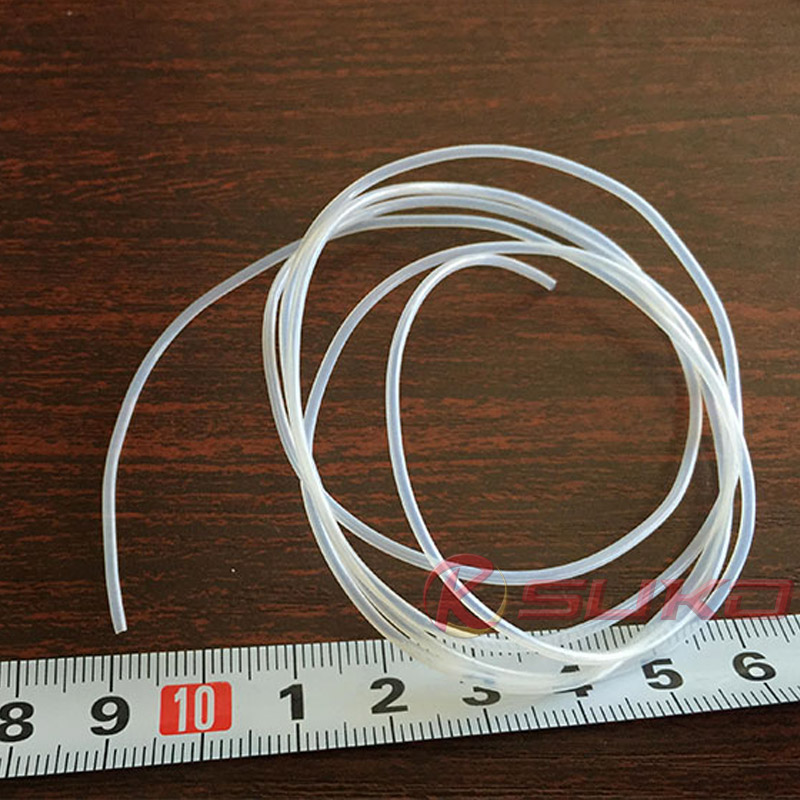

PTFE Hose
SUKO manufactures paste-extruded PTFE Hose for chemical fluid lines, laboratory equipment, medical device components, semiconductor systems and other precision applications.
Unlike corrugated hose, this tubing has smooth inner and outer surfaces. Its low-friction bore is suitable for transferring liquids or gases. It can also protect wires, sensors and small components.
Reference manufacturing capabilities include outside diameters from 0.3 to 70 mm and wall thicknesses from 0.025 to 2 mm. However, available combinations depend on the required tolerance, material, hose structure and application.
Reference Specifications
| Parameter | Reference Range / Option |
|---|---|
| Outside Diameter | 0.3-70 mm |
| Wall Thickness | 0.025-2 mm |
| Inside Diameter | Customized to drawing or sample |
| Supply Length | Continuous coils or specified cut lengths |
| Color | Natural translucent or custom colors |
| Surface Treatment | Optional outer-surface etching |
| Production Environment | Class 10,000 cleanroom production available |
Not every outside diameter and wall thickness combination is available. Final specifications depend on dimensional tolerance, material grade, hose structure and application requirements.
Production Experience
SUKO has supplied PTFE hose extrusion equipment and related production solutions to customers in Spain, India and the United States.
We manufacture both PTFE tubing and extrusion equipment. This experience allows us to assist with tubing dimensions, die development and extrusion process selection.
PTFE Hose Extrusion Video
The video shows an automatic SUKO PTFE tubing extrusion line in operation.
PTFE Hose Extrusion Equipment
SUKO develops PTFE paste extrusion equipment for different hose sizes and precision requirements.
General PTFE Hose Paste Extruder
The standard extrusion line is designed for general-purpose and larger-diameter PTFE hoses. It is mainly used for industrial fluid tubing, chemical transfer lines, insulating tubes and other smooth-bore PTFE products.
Reference production range:
- Outside diameter: 0.5-70 mm
- Wall thickness: 0.025-2 mm
- Continuous extrusion and coiling available
- Dies can be customized for different hose sizes
View the General PTFE Hose Paste Extruder
Upgraded SK5 Precision Extrusion Line
The upgraded SK5 extrusion line focuses on smaller diameters, thinner walls and tighter dimensional control. It is suitable for precision PTFE tubing used in medical device components, laboratory systems and other applications where stable small dimensions are required.
Reference SK5 models:
- SK5-30 PRO: OD 0.5-5 mm, wall thickness 0.05-0.5 mm
- SK5-20 PRO MAX: OD 0.3-3 mm, wall thickness 0.025-0.2 mm
- Optional multi-lumen and multilayer tubing configurations
- Class 10,000 cleanroom production solutions available
View the SK5 Precision PTFE Tubing Extrusion Line
SUKO can recommend the standard or SK5 extrusion system according to the required hose diameter, wall thickness, tolerance and intended application.
View Detailed Specifications
For detailed parameters, customization options, applications and FAQs, visit:
Contact SUKO
Send us your required OD, ID or wall thickness, length, quantity and application.
Phone / WhatsApp: +86 19975113419
