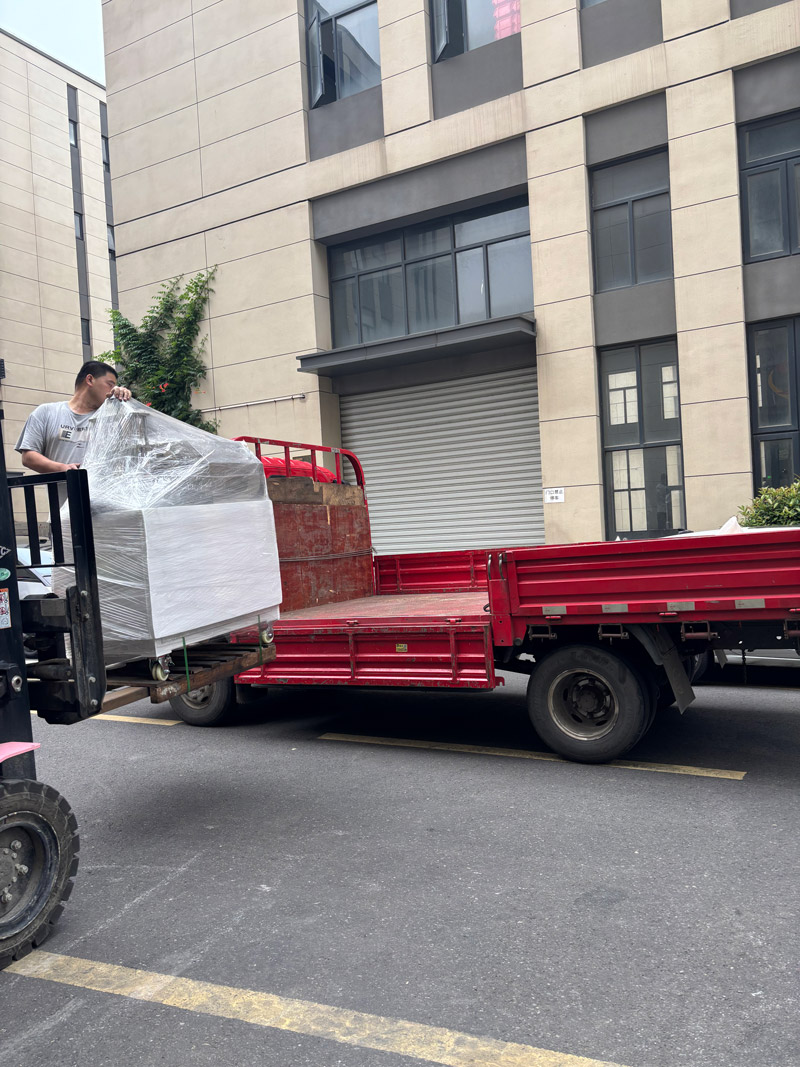

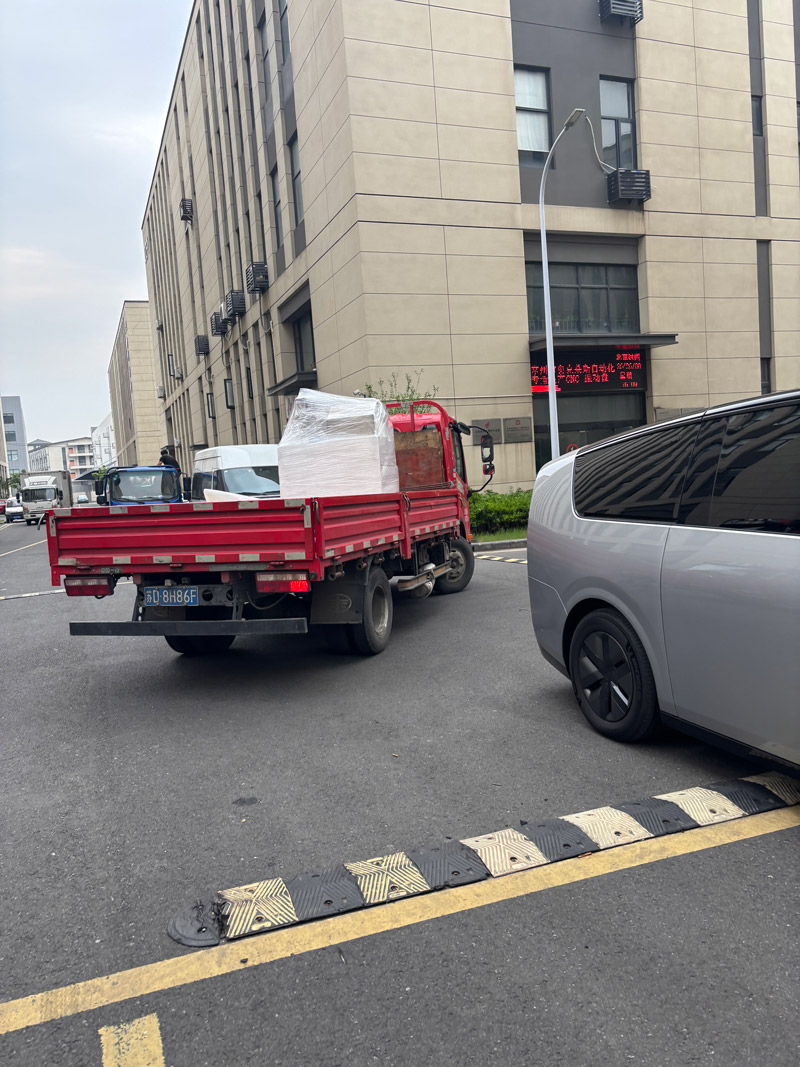

On June 8, 2026, suko (SuKo Polymer Machine Tech Co., Ltd.) successfully shipped one unit of customized CKCM50 PTFE corrugated pipe machine to a customer in Dalian, China. Unlike standard models, this machine was specifically engineered to meet the customer’s precise production requirements for small-to-medium diameter PTFE corrugated pipes.
Customization Highlights for Dalian Customer
| Parameter | Custom Specification |
|---|---|
| Pipe outer diameter range | 8 – 50 mm (standard model up to 70 mm) |
| Wall thickness range | 1 – 2 mm |
| Pitch accuracy | ±1 mm |
| Control system | PLC with fixed-length setting for threaded extrusion section |
| Extrusion speed & temperature | Adjustable |
| Output speed | 12 – 20 m/h |
The machine underwent factory testing using the customer’s own raw materials. All customized functions were verified to meet the required specifications.
Why Choose suko for Custom PTFE Machines?
suko specializes in non‑standard PTFE equipment design and manufacturing, providing tailored solutions for:
-
Adjustable outer diameter and wall thickness ranges
-
High-precision pitch control (±1 mm)
-
PLC intelligent control with programmable fixed-length extrusion
-
Flexible process parameters (speed, temperature, pressure)
All machines are tested with customer materials before delivery, ensuring a seamless “plug‑and‑produce” experience.

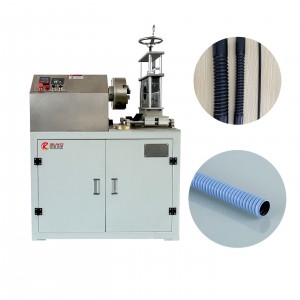

Technical Specifications (CKCM50 Platform)
| Parameter | Standard Range |
|---|---|
| Machine dimensions (L×W×H) | 1130 × 600 × 1580 mm |
| Motor power | 3 kW |
| Max. outer diameter | 70 mm |
| Min. outer diameter | 8 mm |
| Wall thickness range | 0.8 – 2 mm |
| Control type | PLC program control |
| Output speed | 12 – 20 m/h |
| Pitch accuracy | ±1 mm |
| Special function | Fixed-length setting for threaded section |
Note: The shipped unit was customized with an outer diameter range of 8‑50 mm and wall thickness of 1‑2 mm.
About suko
SuKo Polymer Machine Tech Co., Ltd. (suko) was founded in 2014 and owns a 6,000+ m² factory with a Class 10,000 cleanroom. We are ISO13485 certified, recognized as a high‑tech enterprise, and hold over 40 patents. Our products are exported to more than 40 countries and regions, including the USA, Japan, Germany, and Brazil.
Contact Us
Need a PTFE corrugated pipe machine with specific requirements? Contact suko today.
Website:https://www.sukoptfe.com/
Email:info@sukoptfe.com
Phone: +86 19975113419
Post time: Jun-09-2026
