The Ultimate Guide to ePTFE Membranes: Properties, Benefits & Applications

What is ePTFE (Expanded Polytetrafluoroethylene)?

So, what is ePTFE exactly? ePTFE stands for expanded Polytetrafluoroethylene. It's a highly porous, strong, and versatile material derived from PTFE, commonly known by its DuPont brand name, Teflon™. The "expanded" part is crucial. Through a specialized manufacturing process, PTFE is stretched or expanded under controlled conditions. This process creates a unique microstructure consisting of solid PTFE nodes interconnected by a web of fine PTFE fibrils.

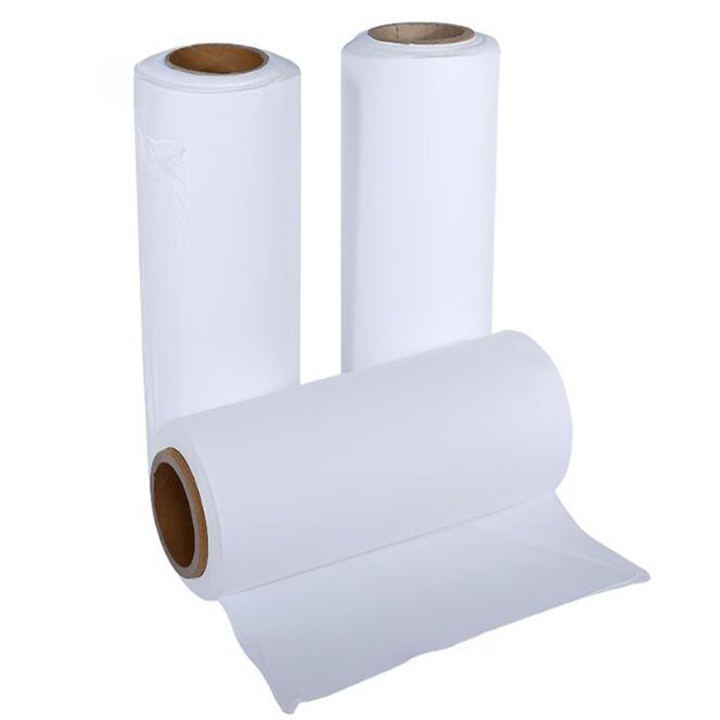

The result is an ePTFE membrane that retains many of the desirable properties of virgin PTFE, such as chemical inertness and high-temperature resistance, while introducing new benefits like controlled porosity, breathability, and enhanced flexibility. This intricate, web-like structure is what defines microporous PTFE and is the source of its exceptional performance characteristics.

At SUKO, we have honed this expansion process to produce ePTFE membranes with precisely engineered pore sizes and structures, tailored to meet the specific demands of diverse applications.

6

Key Expanded PTFE Properties

The unique manufacturing process of ePTFE results in a material with an extraordinary combination of expanded PTFE properties. These properties are the foundation of its widespread use and success.

Property Description Implication for Applications
Microporous Structure Composed of nodes and fibrils, creating a network of tiny pores, typically ranging from 0.02 to 10 microns. Allows for controlled passage of gases and vapors while blocking liquids and particulates. Key for venting and filtration.
Hydrophobicity Water-repellent. Water beads up and does not wet the surface. Measured by high contact angles (typically >110° for water). Excellent for waterproof breathable textiles, venting applications to protect enclosures from water ingress.
Oleophobicity (Optional) Repels oils and other low surface tension liquids. This is often achieved through additional surface treatments. Crucial for applications where oil contamination is a concern, such as automotive vents or protective industrial wear.
Chemical Inertness Highly resistant to almost all chemicals, acids, bases, and solvents, except for molten alkali metals and highly reactive fluorinating agents. Ideal for harsh chemical processing, seals, gaskets, and medical implants.
High-Temperature Resistance Can withstand continuous operating temperatures typically ranging from -200°C to +260°C (-328°F to +500°F). Suitable for high-temperature industrial processes, automotive components, and aerospace applications.
Low Dielectric Constant An excellent electrical insulator with a low dielectric constant (around 2.1) and low dissipation factor. Used in high-frequency coaxial cables, printed circuit boards, and other electronic components.
Low Coefficient of Friction One of the lowest coefficients of friction of any solid material (typically 0.05 to 0.10). Reduces wear and energy consumption in moving parts, used for non-stick surfaces and low-friction bearings.
Biocompatibility Non-toxic and biologically inert, generally well-accepted by the human body. USP Class VI compliant grades are available. Extensively used in medical implants, surgical patches, and sutures.
High Strength-to-Weight Ratio Despite its porosity, ePTFE can be engineered to be very strong and durable while remaining lightweight. Beneficial for aerospace, portable devices, and performance apparel.
UV Resistance Excellent resistance to UV radiation, meaning it doesn't degrade significantly when exposed to sunlight. Suitable for outdoor applications and products requiring long-term environmental stability.

These expanded PTFE properties make the ePTFE membrane a truly exceptional material, offering solutions where other materials might fail. SUKO leverages these intrinsic properties to develop tailored solutions for our clients.

Benefits of ePTFE Membranes

The inherent properties of ePTFE translate into a wide array of benefits of ePTFE across various industries:

  1. Enhanced Product Performance and Reliability:
    • Protection: ePTFE membranes act as a barrier against water, dust, dirt, and other contaminants, extending the life of sensitive components.
    • Breathability: In venting applications, they allow for pressure equalization, preventing seal failure and condensation buildup, which is crucial for electronic enclosures and automotive components.
    • Purity: In filtration, the microporous structure efficiently removes particulate matter from liquids and gases, ensuring product purity in pharmaceutical and food & beverage industries.
  2. Increased Durability and Longevity:
    • The chemical and temperature resistance of ePTFE membranes means they can withstand harsh operating environments, leading to longer product lifecycles and reduced maintenance costs.
    • Their inherent strength and flexibility prevent tearing or cracking under stress.
  3. Improved Safety:
    • In medical applications, biocompatibility and the ability to create barriers against bacteria contribute to patient safety.
    • In industrial settings, reliable sealing and venting prevent hazardous leaks and equipment failure.
  4. Design Flexibility:
    • ePTFE can be laminated to various substrates, die-cut into complex shapes, and welded, offering designers immense flexibility.
    • The ability to customize pore size, thickness, and airflow allows for fine-tuning performance to specific application needs. SUKO excels in providing such customized solutions.
  5. Cost-Effectiveness (Total Cost of Ownership):
    • While the initial material cost might be higher than some alternatives, the extended product life, reduced maintenance, and prevention of costly failures often result in a lower total cost of ownership.

The unique combination of these benefits of ePTFE makes it an indispensable material for innovation and problem-solving.

ePTFE Applications: A World of Possibilities

The versatility stemming from its unique properties means ePTFE applications are incredibly diverse and continuously expanding. Here are some key areas where ePTFE membranes are making a significant impact:

  1. Industrial Filtration & Separation:
    • Liquid Filtration: Used in microfiltration and ultrafiltration for chemicals, pharmaceuticals, and water treatment. The microporous PTFE structure ensures high particle retention and flow rates.
    • Air/Gas Filtration: High-efficiency particulate air (HEPA) and ultra-low penetration air (ULPA) filters, vent filters for bioreactors, and gas sampling.
    • Example: A chemical processing plant might use ePTFE filter bags in their baghouse dust collectors to capture fine particles in hot, corrosive gas streams, ensuring compliance with emission standards and improving process efficiency. According to the McIlvaine Company, the global market for hot gas filtration, where ePTFE plays a role, is substantial, driven by environmental regulations.
  2. Venting Solutions:
    • Electronic Enclosures: Prevents pressure buildup due to temperature fluctuations in sealed electronics (e.g., outdoor lighting, automotive sensors, telecommunication equipment), while keeping out water and dust. This helps maintain the integrity of seals and prevent moisture ingress, which could lead to corrosion or short circuits.
    • Automotive Components: Used in headlights, taillights, battery packs, motors, and control units to equalize pressure and protect against contaminants. For instance, a study by W. L. Gore & Associates (a pioneer in ePTFE) demonstrated significant reduction in condensation in automotive headlamps using ePTFE vents.
    • Packaging: Breathable vents for containers holding chemicals that outgas, preventing container deformation or rupture.
    • Our SUKO Expanded PTFE Membrane for Chemical Resistant Venting is specifically designed for these demanding venting applications.
  3. Medical Devices:
    • Vascular Grafts: ePTFE's biocompatibility and porous structure allow for tissue ingrowth, making it ideal for synthetic blood vessels.
    • Surgical Patches: Used for soft tissue repair, such as hernia repair or dural closure.
    • Sutures: Non-absorbable sutures with excellent handling characteristics.
    • Implantable Devices: Housings and components for pacemakers, defibrillators, and drug delivery systems.
    • Device Venting: Sterile vents for medical device packaging and fluid administration sets.
    • The FDA database lists numerous medical devices incorporating ePTFE, underscoring its acceptance and efficacy in this critical field.
  4. Sealing Materials (Gaskets & Seals):
    • Gasket Tapes and Sheets: Conformable ePTFE creates tight seals even on irregular or damaged flange surfaces, widely used in chemical plants, power generation, and pulp & paper industries.
    • Valve Stem Packing: Provides low-friction, chemically resistant sealing for valves.
  5. Textiles & Apparel:
    • Waterproof Breathable Fabrics: ePTFE membranes are laminated to fabrics to create garments that keep rain out while allowing perspiration vapor to escape (e.g., GORE-TEX® brand). This is a well-known application where the microporous PTFE structure shines.
  6. Electronics & Telecommunications:
    • High-Performance Cable Insulation: The low dielectric constant and high-temperature resistance of ePTFE make it ideal for coaxial cables and other high-frequency applications, minimizing signal loss.
    • Dielectric Material in Capacitors: Used in specialized capacitors for demanding environments.
  7. Aerospace & Defense:
    • Due to its lightweight nature, wide temperature tolerance, and chemical resistance, ePTFE finds use in seals, gaskets, wire and cable insulation, and protective vents in aircraft and spacecraft.

The breadth of ePTFE applications demonstrates its adaptability and effectiveness in solving complex engineering challenges. SUKO is proud to contribute to these industries by providing high-quality ePTFE membrane solutions.

Imagine the possibilities for your products with a material that resists harsh chemicals, withstands extreme temperatures, repels water while allowing air to pass, and offers proven biocompatibility. The ePTFE membrane is not just a component; it's an enabler of innovation and reliability.

At SUKO, we understand the critical role that high-performance materials play in the success of your projects. Our expertise in expanded PTFE properties and manufacturing allows us to partner with you to develop custom ePTFE membrane solutions that meet your precise specifications. Whether you require specific pore sizes, thicknesses, airflow rates, or lamination to other materials, our team is ready to assist.

Explore our SUKO Expanded PTFE Membrane for Chemical Resistant Venting as a starting point, or reach out to discuss your unique challenge.

Choosing the Right ePTFE Membrane for Your Application

Selecting the optimal ePTFE membrane requires careful consideration of several factors:

  • Pore Size and Distribution: Crucial for filtration efficiency and airflow characteristics. Finer pores offer better particle retention but may have lower flow rates.
  • Thickness: Affects strength, diffusion rates, and thermal insulation properties.
  • Airflow/Water Entry Pressure (WEP): Key metrics for venting applications. Higher WEP indicates better resistance to water ingress.
  • Backing Material/Lamination: ePTFE can be laminated to various substrates (e.g., non-wovens, wovens) for added strength or specific functionalities.
  • Oleophobicity Requirements: If exposure to oils or low surface tension fluids is expected, an oleophobic grade of ePTFE is necessary.
  • Operating Environment: Temperature extremes, chemical exposure, and mechanical stresses will dictate the grade and specific formulation of ePTFE needed.

With years of experience in the field, SUKO can guide you through this selection process. We believe in a collaborative approach, working closely with our clients to understand their application intricacies and recommend the most suitable ePTFE membrane solution. Our commitment to quality ensures that you receive a product that performs reliably and consistently.

The Future of ePTFE Technology

Research and development in ePTFE technology continue to push boundaries. Innovations focus on:

  • Enhanced Oleophobicity: Developing even more robust oil-repellent treatments.
  • Nanoscale Structures: Engineering membranes with even finer control over pore structure for advanced filtration and separation.
  • Functionalized ePTFE: Incorporating active agents or surface modifications for catalytic reactions, sensing, or enhanced biocompatibility.
  • Sustainable Manufacturing: Exploring greener production methods for PTFE and its expansion.

The future looks bright for ePTFE applications, with potential for breakthroughs in energy storage, advanced drug delivery, and next-generation electronics.

Conclusion: Partner with SUKO for Your ePTFE Membrane Needs

The ePTFE membrane stands out as a material of exceptional versatility and performance. Its unique combination of expanded PTFE properties – including microporosity, hydrophobicity, chemical inertness, and thermal stability – delivers unparalleled benefits of ePTFE across a vast spectrum of ePTFE applications. From life-saving medical devices to robust industrial components and cutting-edge electronics, ePTFE is enabling advancements and ensuring reliability.

At SUKO, we are passionate about harnessing the power of ePTFE. We combine our deep understanding of what is ePTFE with advanced manufacturing capabilities to deliver solutions that meet the highest standards of quality and performance.

Ready to elevate your product's performance with a superior ePTFE membrane?

Let SUKO be your trusted partner for all your ePTFE membrane needs.

Frequently Asked Questions (FAQ)

Q1: What is the main difference between PTFE and ePTFE?
A1: The main difference lies in the structure. PTFE (Polytetrafluoroethylene) is a solid, dense material. ePTFE (expanded Polytetrafluoroethylene) is created by stretching PTFE, which introduces a microporous PTFE structure consisting of nodes interconnected by fibrils. This expansion process gives ePTFE unique properties like breathability and controlled porosity while retaining many of PTFE's desirable characteristics like chemical inertness and temperature resistance.

Q2: Is ePTFE membrane waterproof?
A2: Yes, one of the key expanded PTFE properties is its excellent hydrophobicity, meaning it repels water. The microporous structure of an ePTFE membrane typically has pores small enough to prevent liquid water from passing through under normal conditions, while still allowing water vapor (like perspiration or humid air) to escape. This makes it ideal for waterproof breathable applications.

Q3: What are some common industrial ePTFE applications?
A3: Common industrial ePTFE applications are extensive. They include:

  • Venting: For electronic enclosures, automotive components, and industrial containers to equalize pressure and protect from contaminants. SUKO offers specialized venting products.
  • Filtration: For air, gas, and liquid filtration in chemical processing, pharmaceutical manufacturing, and food/beverage industries.
  • Sealing: As gaskets and seals in demanding chemical and high-temperature environments due to ePTFE's conformability and chemical inertness.
  • Cable Insulation: In high-frequency cables due to its low dielectric constant.

Q4: How does SUKO ensure the quality of its ePTFE membranes?
A4: At SUKO, quality is paramount. We implement stringent quality control measures throughout our manufacturing process, from raw material sourcing to the final expanded product. This includes precise control over the expansion process to achieve desired expanded PTFE properties like pore size, thickness, and airflow. We conduct rigorous testing to ensure our ePTFE membranes meet or exceed industry standards and client specifications.

Q5: Can ePTFE membranes be customized?
A5: Absolutely. One of the major benefits of ePTFE is its customizability. At SUKO, we work closely with clients to tailor ePTFE membranes to their specific needs. Customizations can include variations in pore size, porosity, thickness, airflow rates, mechanical strength, and lamination to different backing materials. If you have a unique challenge, please contact us at info@sukoptfe.com to discuss a custom solution.
